Guhring 5/8 – 11 Bottoming UNC Threads HSS

Product Code: 984 15,875

$141.31$128.46 Ex. GST

Product Code: 984 15,875 SKU 984 15,875 Category CUTTING TOOLS (HSS & Carbide)

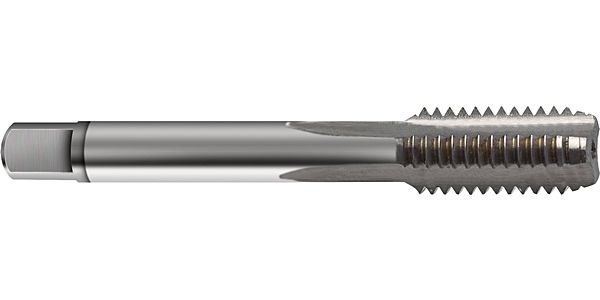

Guhring 5/8 - 11 Bottoming UNC Threads HSS

Guhring 5/8 - 11 Bottoming UNC Threads HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Bottoming tap Hand taps for UNC-threads 5/8 – 11 / 2B / ~DIN 352 / DIN 2184-2 / HSS / bright / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0650 kg
Dimensions	Length 80cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 352 Surface: bright Discount group: 118 Type: 984 Cutting direction: right-hand Type: N Material: HSS Additional information: Bottoming tap Form: C Coloured ring: yellow ring Threads: UNC Tolerance class thread: 2B Hole type: through-, blind hole Groove: straight-fluted cutting edges Chamfer lead length: 2-3 Code no.: 15.875 Weight: 0.065 No of cutting edges: 4 Total length: 80.000 Thread length: 30.000 Groove length: 41.000 Norm 2: DIN 2184-2 Wrench opening 1: 9.000 Neck Ø: 11.800 Core hole Ø: 13.50 Shank Ø: 12.000 Nominal dimension thread: 5/8 – 11 Pitch: 2.309 External Ø: 15.970 Pitch thread/inch: 11.000 Statistical goods number: 82074010

Brand

Guhring
