Guhring 5/8-11 UNC 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring

Product Code: 3992 15,875

$288.42$262.20 Ex. GST

Product Code: 3992 15,875 SKU 3992 15,875 Category CUTTING TOOLS (HSS & Carbide)

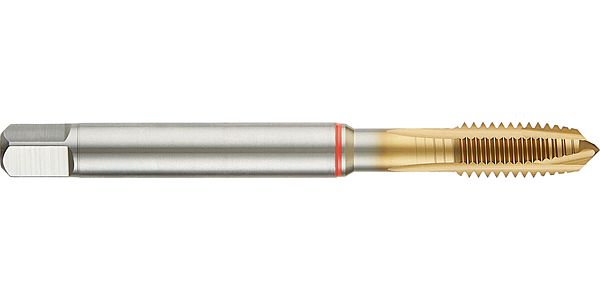

Guhring 5/8-11 UNC 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring

Guhring 5/8-11 UNC 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 5/8 – 11 / 2B / Company std. / DIN/ANSI / HSS-E-PM / TiN / Type: H / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0990 kg
Dimensions	Length 110cm x Width cm x Depth cm
barcode

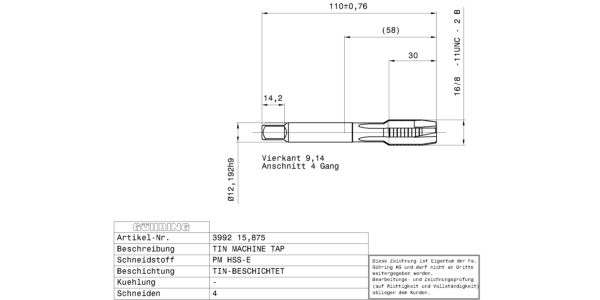

Additional Information	Connection Code Machine Side: Straight Shank Internal Cooling: Without Norm: Company Std. Surface: TiN Discount Group: 103 Type: 3992 Cutting Direction: Right-hand Type: H Material: HSS-E-PM Additional Information: Internal Threading Form: B Coloured Ring: Red Ring Threads: UNC Tolerance Class Thread: 2B Hole Type: Through Hole Groove: Straight-fluted Cutting Edges Chamfer Lead Length: 3.5-5.5 Code No.: 15.875 Weight: 0.099 No of Cutting Edges: 4 Total Length: 110 Thread Length: 30 Groove Length: 49 Usable Length: 53 Norm 2: DIN/ANSI Wrench Opening 1: 9.14 Core Hole Ø: 13.5 Shank Ø: 12.192 Nominal Dimension Thread: 5/8 – 11 External Ø: 15.97 Pitch Thread/Inch: 11 Reach Length: 58 Statistical Goods Number: 82074010

Brand

Guhring
