Guhring 5/8 - 18 Dies UNF HSS - Millers Tooling Pty Ltd Shop Online

Description

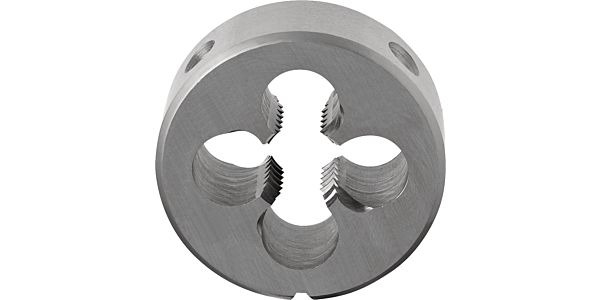

Dies for UNF-threads 5/8 – 18 / 2a / DIN EN 22568 / HSS / bright / Form: B / Cutting direction: right-hand /
Application: P ≤ 1000 N/mm²

Weight	0.1090 kg
Dimensions	Length 14cm x Width cm x Depth cm
barcode
Additional Information	Tolerance on Ø: 2a Internal Cooling: without Norm: DIN EN 22568 Surface: bright Discount Group: 103 Type: 185 Cutting Direction: right-hand Material: HSS Form: B Threads: UNF Tolerance Class Thread: 2a Chamfer Form: with chamfer Chamfer Lead Length: 1.75xP Code No.: 15.875 Weight: 0.109 No. of Cutting Edges: 5 Total Length: 14.000 Nominal Dimension Thread: 5/8 – 18 Pitch: 1.411 External Ø: 45.000 Pilot Hole Ø Work Piece: 15.730 Pitch Thread/Inch: 18.000 Statistical Goods Number: 82074030
