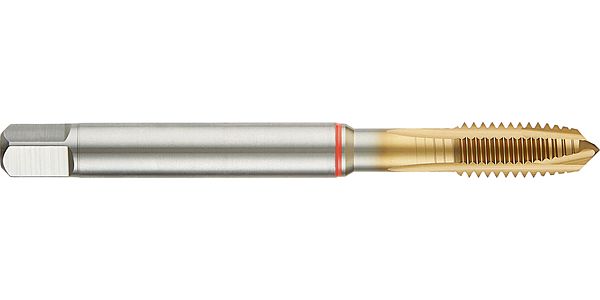

Guhring 5/8-18 UNF 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring

Connection code machine side: straight shank
Internal cooling: without
Norm: Company std.
Surface: TiN
Discount group: 103
Type: 3994
Cutting direction: right-hand
Type: H
Material: HSS-E-PM
Additional information: Internal threading
Form: B
Coloured ring: red ring
Threads: UNF
Tolerance class thread: 2B
Hole type: through hole
Groove: straight-fluted cutting edges
Chamfer lead length: 3.5-5,5
Code no.: 15.875
Weight: 0.093
No of cutting edges: 4

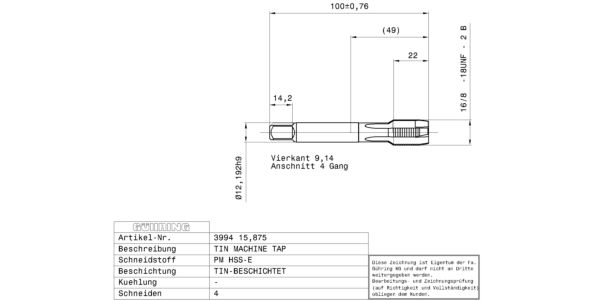

Total length: 100.000
Thread length: 22.000
Groove length: 40.000
Usable length: 44.000
Norm 2: DIN/ANSI
Wrench opening 1: 9.140
Core hole Ø: 14.50
Shank Ø: 12.192
Nominal dimension thread: 5/8 – 18
External Ø: 15.970
Pitch thread/inch: 18.000
Reach length: 49.000
Statistical goods number: 82074010
