Guhring 5/8-18 UNF Taps HSS-E Yellow band

Product Code: 911 15,875

$189.95$172.68 Ex. GST

Product Code: 911 15,875 SKU 911 15,875 Category CUTTING TOOLS (HSS & Carbide)

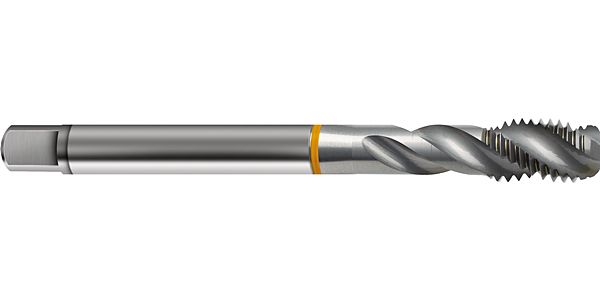

Guhring 5/8-18 UNF Taps HSS-E Yellow band

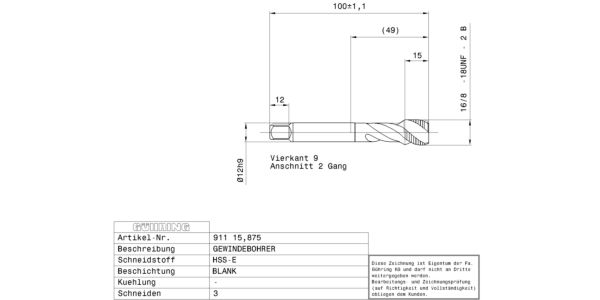

Guhring 5/8-18 UNF Taps HSS-E Yellow band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 5/8 – 18 / 2B / 3xD / ~DIN 374 / DIN 2184-1 / HSS-E / bright / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0780 kg
Dimensions	Length 100cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: bright Discount group: 103 Type: 911 Cutting direction: right-hand Type: N R40 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: yellow ring Threads: UNF Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 15.875 Weight: 0.078 No of cutting edges: 3 Total length: 100.000 Thread length: 15.000 Groove length: 40.000 Usable length: 44.000 Norm 2: DIN 2184-1 Wrench opening 1: 9.000 Neck Ø: 11.800 Core hole Ø: 14.50 Shank Ø: 12.000 Nominal dimension thread: 5/8 – 18 Pitch: 1.411 External Ø: 15.970 Pitch thread/inch: 18.000 Reach length: 49.000 Statistical goods number: 82074010

Brand

Guhring
