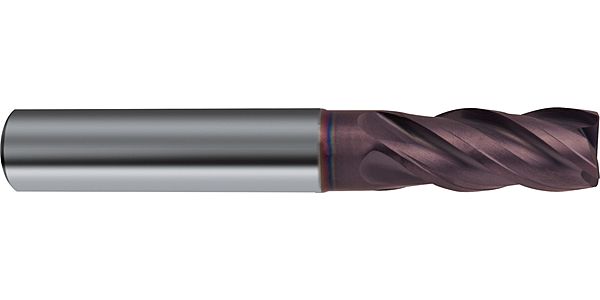

Guhring 5/8 Endmill 4 Flute Carbide Fire Coat

Description

Ratio end mills standard RF 100 U / Ø 15.875 mm / h10 / Company std. / Solid carbide / FIRE / Type: N / Cutting direction: right-hand

Weight	0.2140 kg
Dimensions	Length 88.9cm x Width cm x Depth cm
barcode

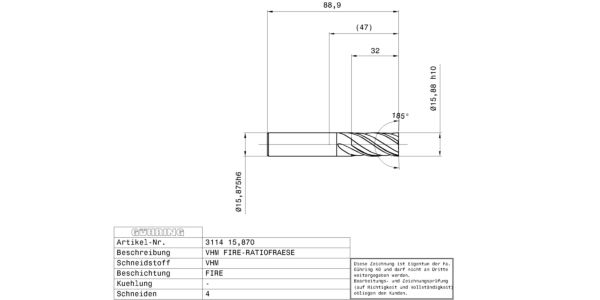

Additional Information	Connection code machine side: ~DIN 6535-HA Nominal Ø tolerance field: h10 Internal cooling: Without Norm: Company std. Surface: FIRE Discount group: 106 Type: 3114 Cutting direction: Right-hand Type: N Material: Solid carbide No of cutting edges: 4 Helix angle: 35/38 Code no.: 15.870 Weight: 0.214 Total length: 88.900 Groove length: 42.319 Usable length: 42.319 Shank Ø: 15.875 Nominal Ø mm: 15.875 Nominal Ø fractional: 5/8 Cutting edge length: 32.000 Reach length: 47.000 Corner chamfer: 0.350 Statistical goods number: 82077010
