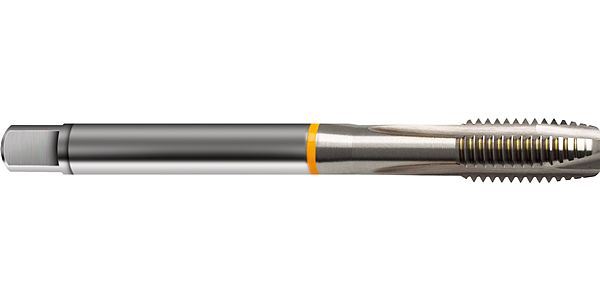

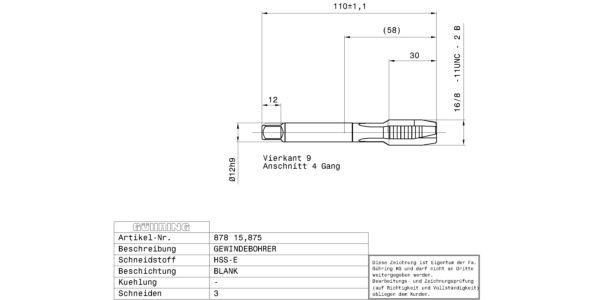

Guhring 5/8 x 11 UNC Gun Nose Tap HSS-E Yellow band

Connection code machine side: straight shank
Internal cooling: without
Norm: ~DIN 376
Surface: bright
Discount group: 103
Type: 878
Cutting direction: right-hand
Type: N
Material: HSS-E
Additional information: Internal threading
Form: B
Coloured ring: yellow ring
Threads: UNC
Tolerance class thread: 2B
Hole type: through hole
Groove: straight-fluted cutting edges
Chamfer lead length: 3.5-5.5
Code no.: 15.875
Weight: 0.089
No of cutting edges: 3
Total length: 110.000
Thread length: 30.000
Groove length: 49.000
Usable length: 53.000
Norm 2: DIN 2184-1
Wrench opening 1: 9.000
Neck Ø: 11.800
Core hole Ø: 13.50
Shank Ø: 12.000
Nominal dimension thread: 5/8 – 11
Pitch: 2.309
External Ø: 15.970
Pitch thread/inch: 11.000
Reach length: 58.000
Statistical goods number: 82074010
