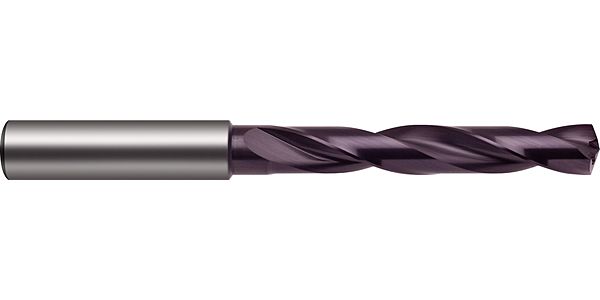

Guhring 5 x D ratio drill thru cool Carbide Fire Coated

Description

Ratio drills with coolant ducts Solid carbide / Ø 6.600 mm m7 / 5xD / DIN 6537L / Surface: nanoFIRE / Cutting direction: right-hand / facet point grinding 140°
Execution: Web thinning ≥ Ø 3.000 mm • facet point grind • main cutting edge form straight • optimised cutting edge geometry
Application: structural and case hardened steels • free-cutting steels, heat-treatable steels • steels (alloyed/unalloyed) up to 1200 N/mm² • cast materials • bronze, brass • high-alloyed AlSi alloys

Additional information

Weight	0.0400 kg
Dimensions	Length 91cm x Width cm x Depth cm
barcode

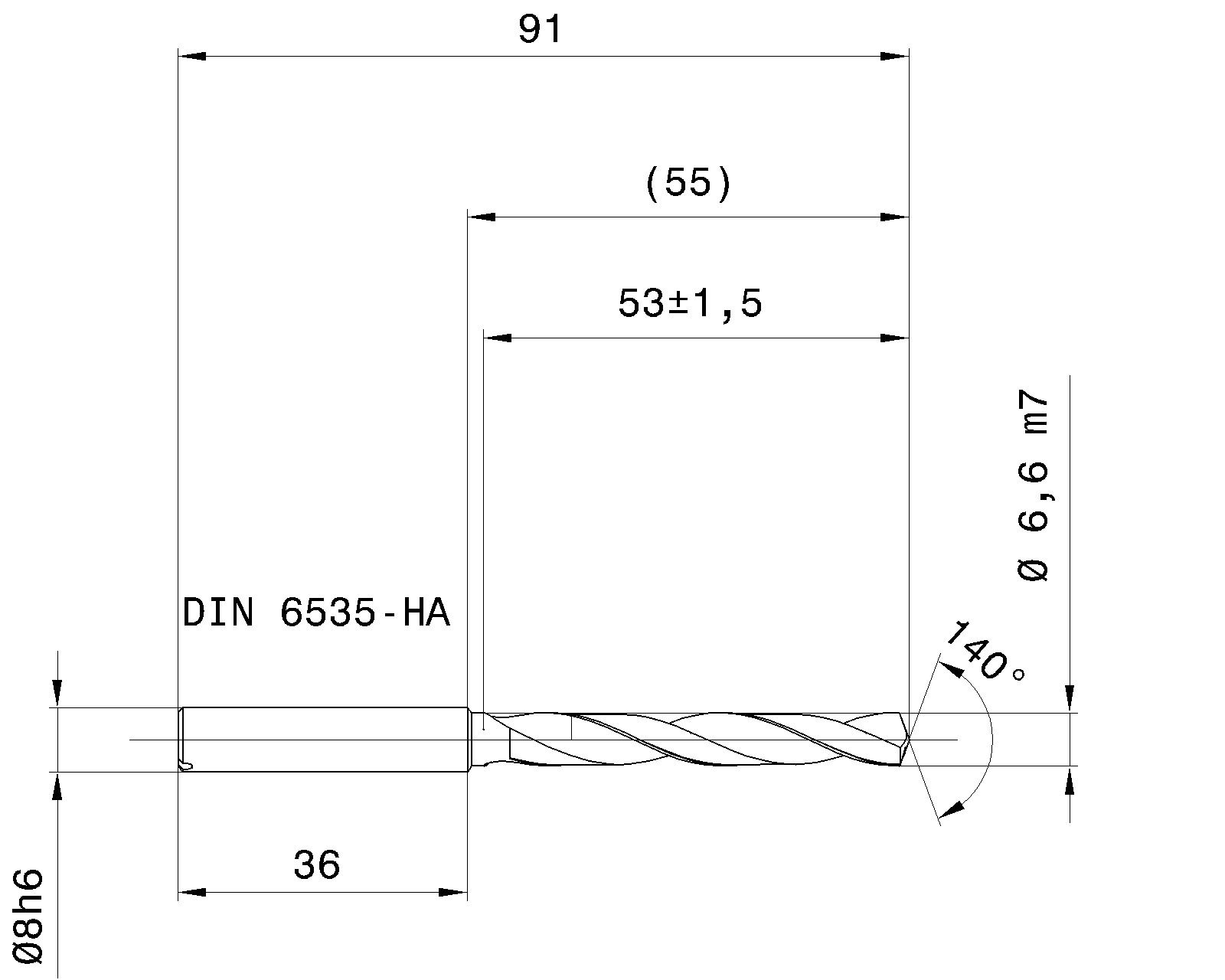

Additional Information	Point grinding: facet point grinding Connection code machine side: DIN 6535-HA Ø-Thinning: 3.000 Nominal Ø tolerance field: m7 Internal cooling: with Norm: DIN 6537L Surface: nanoFIRE Discount group: 155 Type: 5511 Cutting direction: right-hand Type: RT 100 U Point angle: 140 Material: Solid carbide (Variety): 48 Code no.: 6.600 Weight: 0.040 No of cutting edges: 2 Total length: 91.000 Groove length: 53.000 Usable length: 42.000 Shank Ø: 8.000 Shank length: 36.000 Nominal Ø mm: 6.600 Statistical goods number: 82075050
