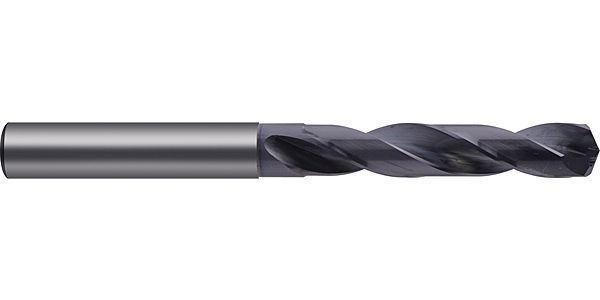

Guhring 5 x D ratio drill thru cool Carbide Fire Coated Stainless Steel

Description

Ratio drills with coolant ducts Solid carbide / Ø 9.500 mm m7 / 5xD / DIN 6537L / Surface: TiAlN-nanoA / Cutting direction: right-hand / facet point grinding 140°
Execution: Web thinning ≥ Ø 3.000 mm • facet point grind • main cutting edge form straight • optimised cutting edge geometry
Application: stainless/acid-/heat-resistant steels • Titanium and Titanium alloys • Inconel, Hastelloy, Monel

Additional information

Weight	0.0780 kg
Dimensions	Length 103cm x Width cm x Depth cm
barcode

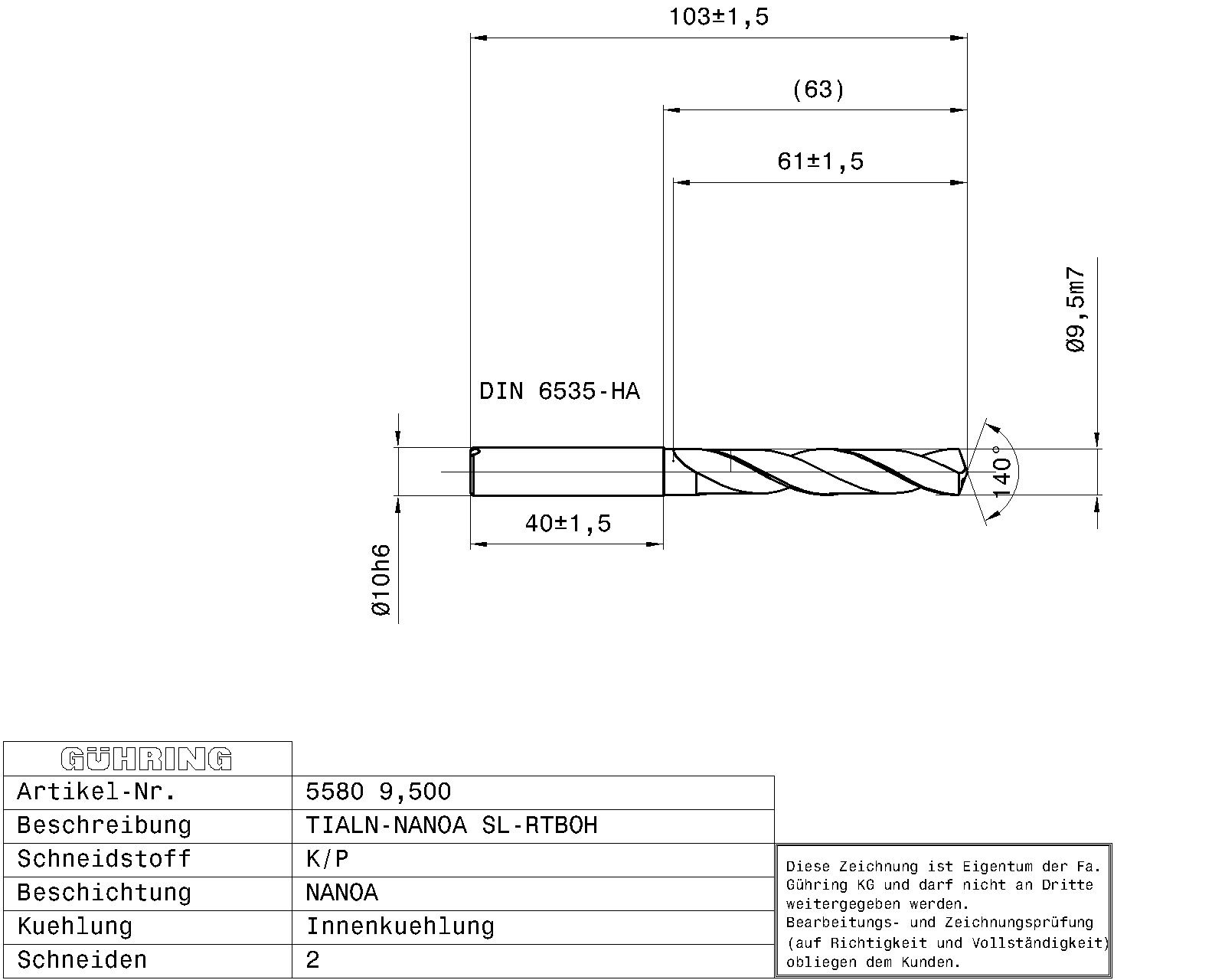

Additional Information	Point grinding: facet point grinding Connection code machine side: DIN 6535-HA Ø-Thinning: 3.000 Nominal Ø tolerance field: m7 Internal cooling: with Norm: DIN 6537L Surface: TiAlN-nanoA Discount group: 155 Type: 5580 Cutting direction: right-hand Type: RT 100 VA Point angle: 140 Material: Solid carbide Code no.: 9.500 Weight: 0.078 No of cutting edges: 2 Total length: 103.000 Groove length: 61.000 Usable length: 49.000 Shank Ø: 10.000 Shank length: 40.000 Nominal Ø mm: 9.500 Statistical goods number: 82075050

Guhring 5 x D ratio drill thru cool Carbide Fire Coated Stainless Steel

Need Technical Advice?

Description

Additional information

Brand

Guhring
