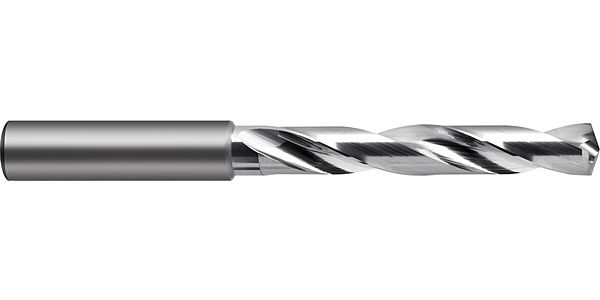

Guhring 5 x D Ratio Drill Thru Coolant Carbide RF100 A Polished For Aluminium

Description

Ratio drills with coolant ducts Solid carbide / Ø 11.100 mm m7 / 5xD / DIN 6537L / Surface: bright / Cutting direction: right-hand / relieved cone 140°
Execution: Web thinning ≥ Ø 3.000 mm • relieved cone • main cutting edge is slightly concave • optimised cutting edge geometry • sharp cutting characteristics • polished functional surfaces for the prevention of built-up edges
Application: aluminium and Al alloys • Al materials with high Si-content

Additional information

Weight	0.126 kg
Dimensions	Length 118cm x Width cm x Depth cm
barcode

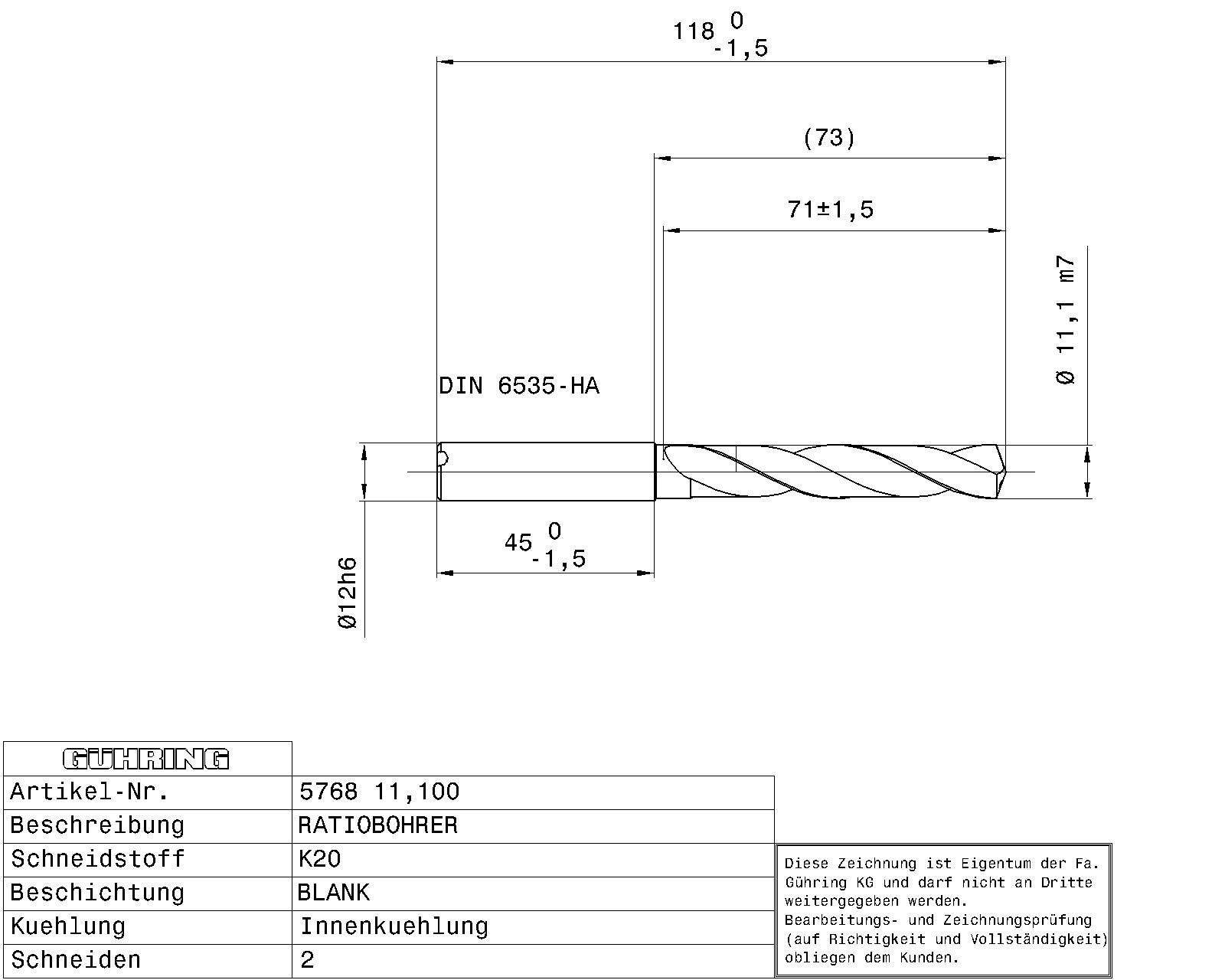

Additional Information	Point grinding: relieved cone Connection code machine side: DIN 6535-HA Ø-Thinning: 3.000 Nominal Ø tolerance field: m7 Internal cooling: with Norm: DIN 6537L Surface: bright Discount group: 155 Type: 5768 Cutting direction: right-hand Type: RT 100 Al Point angle: 140 Material: Solid carbide Code no.: 11.100 Weight: 0.126 Number of cutting edges: 2 Total length: 118.000 Groove length: 71.000 Usable length: 56.000 Shank Ø: 12.000 Shank length: 45.000 Nominal Ø mm: 11.100 Statistical goods number: 82075050
