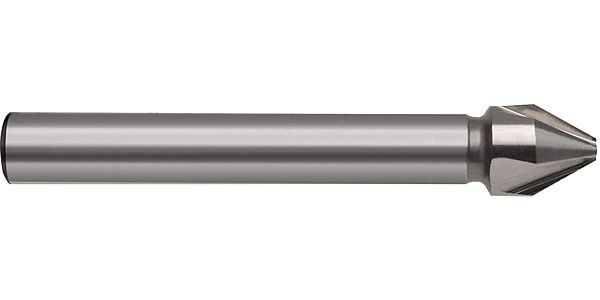

Guhring 60° Countersink HSS

Product Code: 472 20,000

$88.03$80.03 Ex. GST

Product Code: 472 20,000 SKU 472 20,000 Category CUTTING TOOLS (HSS & Carbide)

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Countersinks 60° / Ø 20.000 mm / DIN 334 / HSS / bright / Form: C / Cutting direction: right-hand /
Execution: 3-fluted • radial relieved

Weight	0.0490 kg

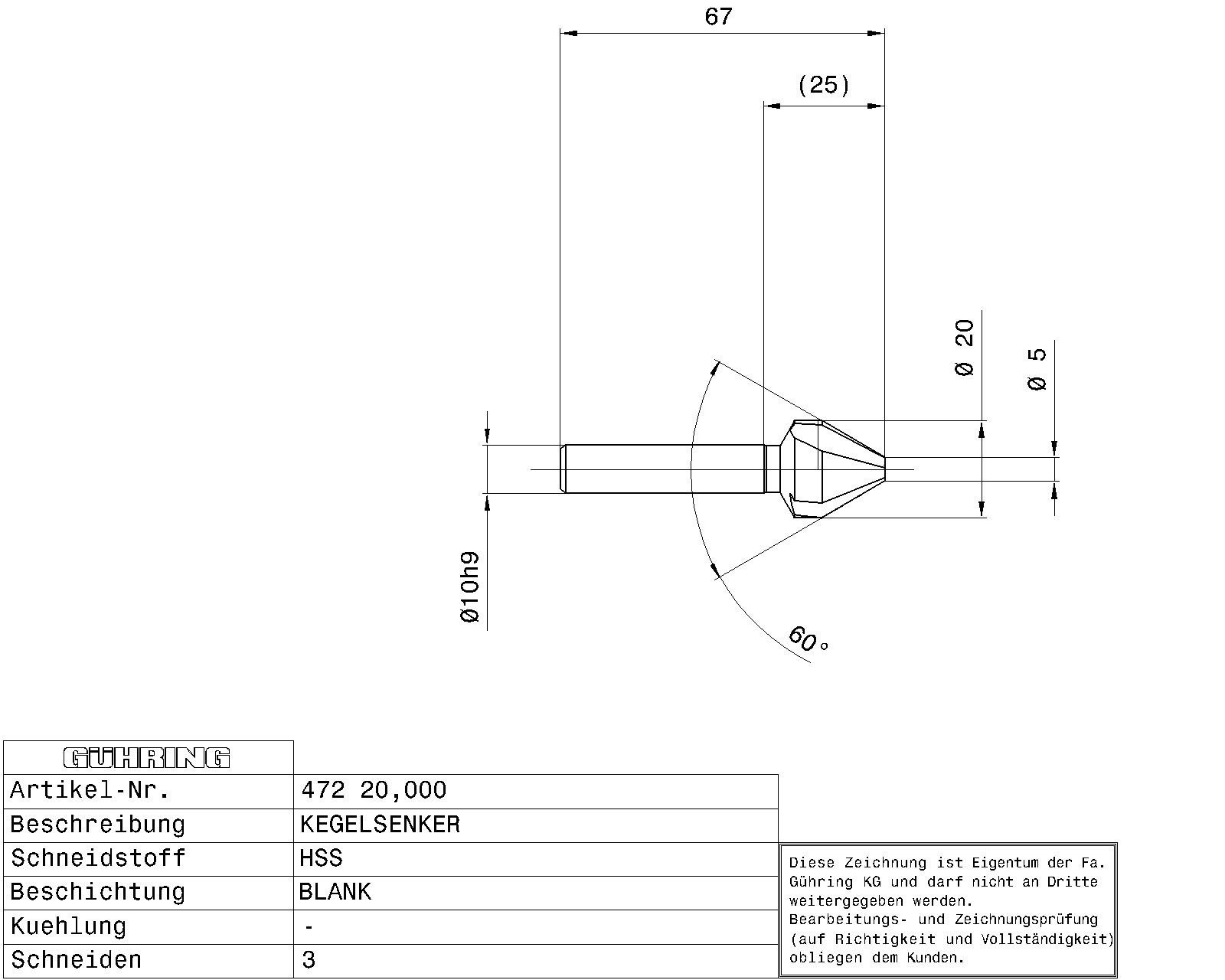

Dimensions
barcode
Additional Information	Point Grinding: relieved cone Connection Code Machine Side: straight shank Internal Cooling: without Norm: DIN 334 Surface: bright Discount Group: 105 Type: 472 Cutting Direction: right-hand Point Angle: 60 Material: HSS Form: C Code No.: 20.000 Weight: 0.049 No. of Cutting Edges: 3 Total Length: 67.000 Groove Length: 20.000 Neck Ø: 9.500 Shank Ø: 10.000 Nominal Ø mm: 20.000 Reach Length: 27.000 Intersection Ø Edge 1: 5.000 Statistical Goods Number: 82076030
