Guhring 7/16 – 14 3pce Hand Tap Set UNC Threads HSS

Product Code: 981 11,113

$268.81$244.37 Ex. GST

Product Code: 981 11,113 SKU 981 11,113 Category CUTTING TOOLS (HSS & Carbide)

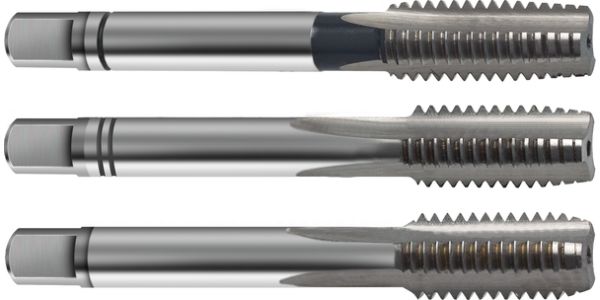

Guhring 7/16 - 14 3pce Hand Tap Set UNC Threads HSS

Guhring 7/16 - 14 3pce Hand Tap Set UNC Threads HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Set Hand taps for UNC-threads 7/16 – 14 / 2B / ~DIN 352 / DIN 2184-2 / HSS / bright / Type: N / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0820 kg
Dimensions	Length 70cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 352 Surface: bright Discount group: 118 Type: 981 Cutting direction: right-hand Type: N Material: HSS Additional information: Set Threads: UNC Tolerance class thread: 2B Hole type: through-, blind hole Code no.: 11.113 Weight: 0.082 Number of parts per set: 3.00 No of cutting edges: 4 Total length: 70.000 Thread length: 22.000 Groove length: 32.000 Norm 2: DIN 2184-2 Wrench opening 1: 6.200 Neck Ø: 7.800 Core hole Ø: 9.40 Shank Ø: 8.000 Nominal dimension thread: 7/16 – 14 Pitch: 1.814 Pitch thread/inch: 14.000 Statistical goods number: 82074010

Brand

Guhring
