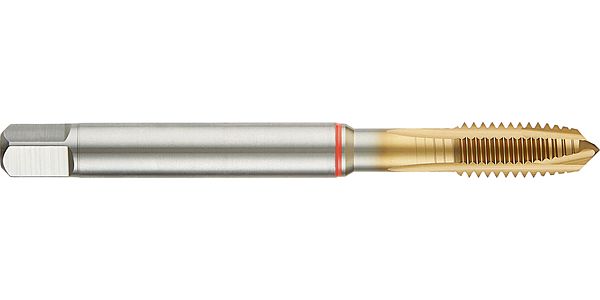

Guhring 7/16-14 UNC 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring

Connection code machine side: straight shank
Internal cooling: without
Norm: Company std.
Surface: TiN
Discount group: 103
Type: 3992
Cutting direction: right-hand
Type: H
Material: HSS-E-PM
Additional information: Internal threading
Form: B
Coloured ring: red ring
Threads: UNC
Tolerance class thread: 2B
Hole type: through hole
Groove: straight-fluted cutting edges
Chamfer lead length: 3.5-5.5
Code no.: 11.113
Weight: 0.047
No of cutting edges: 3

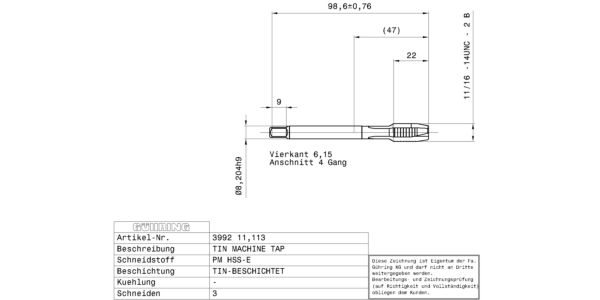

Total length: 100.000
Thread length: 22.000
Groove length: 38.000
Usable length: 42.000
Norm 2: DIN/ANSI
Wrench opening 1: 6.150
Core hole Ø: 9.40
Shank Ø: 8.204
Nominal dimension thread: 7/16 – 14
External Ø: 11.200
Pitch thread/inch: 14.000
Reach length: 47.000
Statistical goods number: 82074010
