Guhring 7/16-14 UNC 2B PM HSS-E Spiral Tap TiN Coated Red Ring

Product Code: 3993 11,113

$222.53$202.30 Ex. GST

Product Code: 3993 11,113 SKU 3993 11,113 Category CUTTING TOOLS (HSS & Carbide)

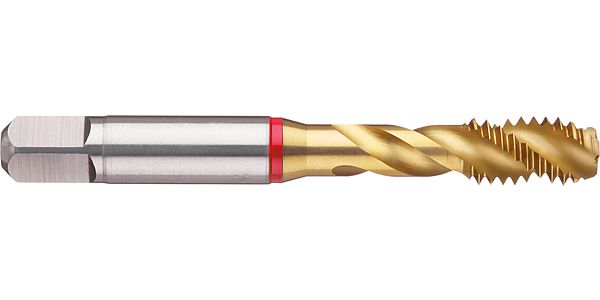

Guhring 7/16-14 UNC 2B PM HSS-E Spiral Tap TiN Coated Red Ring

Guhring 7/16-14 UNC 2B PM HSS-E Spiral Tap TiN Coated Red Ring - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 7/16 – 14 / 2B / Company std. / DIN/ANSI / HSS-E-PM / TiN / Type: H R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0430 kg
Dimensions	Length 100cm x Width cm x Depth cm
barcode
Additional Information	Connection Code Machine Side: Straight Shank Internal Cooling: Without Norm: Company Std. Surface: TiN Discount Group: 103 Type: 3993 Cutting Direction: Right-hand Type: H R40 Material: HSS-E-PM Additional Information: Internal Threading Form: C Coloured Ring: Red Ring Threads: UNC Tolerance Class Thread: 2B Hole Type: Blind Hole Groove: 40° Right-hand Helix Chamfer Lead Length: 2-3 Code No.: 11.113 Weight: 0.043 No of Cutting Edges: 3 Total Length: 100 Thread Length: 18 Groove Length: 38 Usable Length: 42 Norm 2: DIN/ANSI Wrench Opening 1: 6.150 Core Hole Ø: 9.40 Shank Ø: 8.204 Nominal Dimension Thread: 7/16 – 14 External Ø: 11.200 Pitch Thread/Inch: 14.000 Reach Length: 47 Statistical Goods Number: 82074010

Brand

Guhring
