Guhring 7/16 – 20 2pce hand Tap Set UNF Threads HSS

Product Code: 985 11,113

$202.81$184.37 Ex. GST

Product Code: 985 11,113 SKU 985 11,113 Category CUTTING TOOLS (HSS & Carbide)

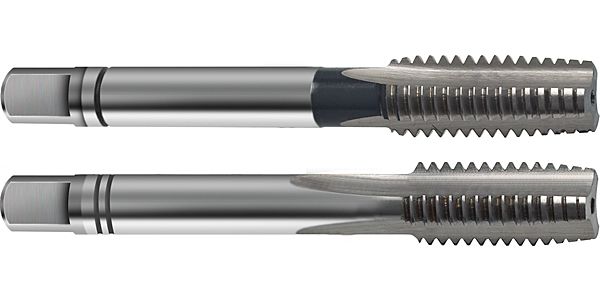

Guhring 7/16 - 20 2pce hand Tap Set UNF Threads HSS

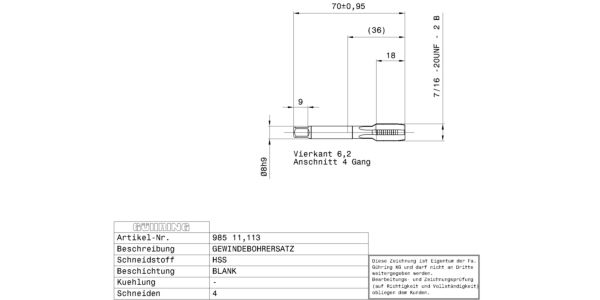

Guhring 7/16 - 20 2pce hand Tap Set UNF Threads HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Set Hand taps for UNF-threads 7/16 – 20 / 2B / ~DIN 2181 / DIN 2184-2 / HSS / bright / Type: N / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.1000 kg
Dimensions	Length 70cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 2181 Surface: bright Discount group: 118 Type: 985 Cutting direction: right-hand Type: N Material: HSS Additional information: Set Threads: UNF Tolerance class thread: 2B Hole type: through-, blind hole Code no.: 11.113 Weight: 0.100 Number parts per set: 2.00 No of cutting edges: 4 Total length: 70.000 Thread length: 18.000 Groove length: 29.000 Norm 2: DIN 2184-2 Wrench opening 1: 6.200 Neck Ø: 7.800 Core hole Ø: 9.90 Shank Ø: 8.000 Nominal dimension thread: 7/16 – 20 Pitch: 1.270 Pitch thread/inch: 20.000 Statistical goods number: 82074010

Brand

Guhring
