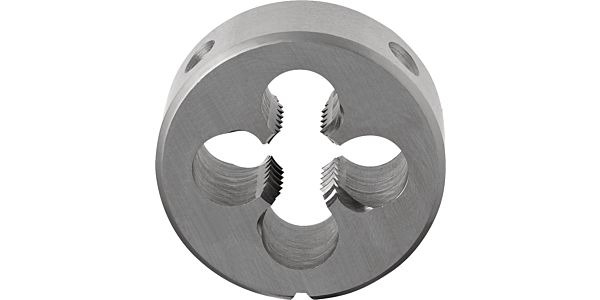

Guhring 7/16 – 20 Dies UNF HSS

Tolerance on Ø: 2a
Internal Cooling: without
Norm: DIN EN 22568
Surface: bright
Discount Group: 103
Type: 185
Cutting Direction: right-hand
Material: HSS
Form: B
Threads: UNF
Tolerance Class Thread: 2a
Chamfer Form: with chamfer
Chamfer Lead Length: 1.75xP
Code No.: 11.113
Weight: 0.037
No. of Cutting Edges: 5
Total Length: 11.000
Nominal Dimension Thread: 7/16 – 20
Pitch: 1.270
External Ø: 30.000
Pilot Hole Ø Work Piece: 10.980
Pitch Thread/Inch: 20.000
Statistical Goods Number: 82074030
