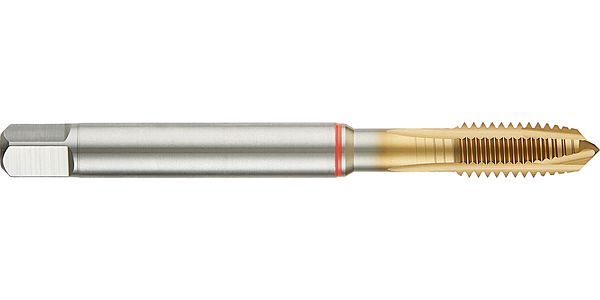

Guhring 7/16-20 UNF 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring

Connection Code Machine Side: Straight Shank
Internal Cooling: Without
Norm: Company Std.
Surface: TiN
Discount Group: 103
Type: 3994
Cutting Direction: Right-hand
Type: H
Material: HSS-E-PM
Additional Information: Internal Threading
Form: B
Coloured Ring: Red Ring
Threads: UNF
Tolerance Class Thread: 2B
Hole Type: Through Hole
Groove: Straight-fluted Cutting Edges
Chamfer Lead Length: 3.5-5.5
Code No.: 11.113
Weight: 0.049
No of Cutting Edges: 3

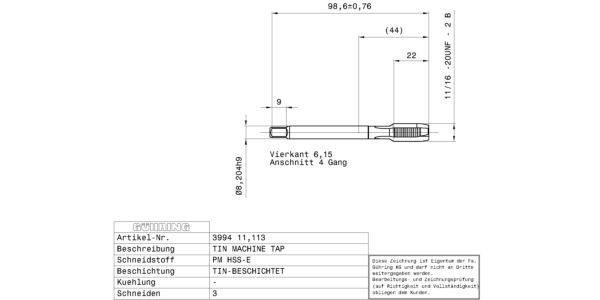

Total Length: 100.000
Thread Length: 22.000
Groove Length: 34.000
Usable Length: 38.000
Norm 2: DIN/ANSI
Wrench Opening 1: 6.150
Core Hole Ø: 9.90
Shank Ø: 8.204
Nominal Dimension Thread: 7/16 – 20
External Ø: 11.200
Pitch Thread/Inch: 20.000
Reach Length: 44.000
Statistical Goods Number: 82074010
