Guhring 7/16-20 UNF 2B PM HSS-E Spiral Tap TiN Coated Red Ring

Product Code: 3995 11,113

$154.00$140.00 Ex. GST

Product Code: 3995 11,113 SKU 3995 11,113 Category CUTTING TOOLS (HSS & Carbide)

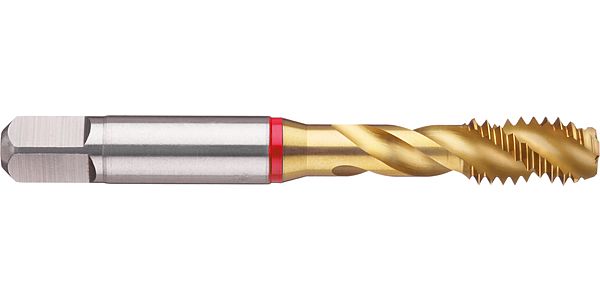

Guhring 7/16-20 UNF 2B PM HSS-E Spiral Tap TiN Coated Red Ring

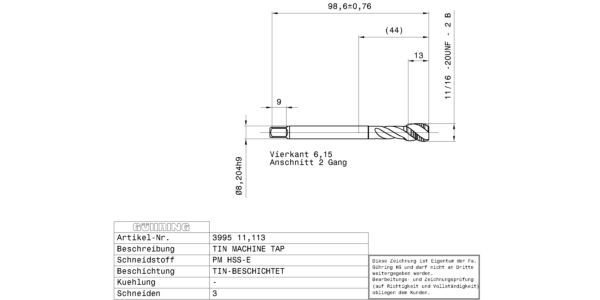

Guhring 7/16-20 UNF 2B PM HSS-E Spiral Tap TiN Coated Red Ring - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 7/16 – 20 / 2B / Company std. / DIN/ANSI / HSS-E-PM / TiN / Type: H R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0450 kg
Dimensions	Length 100cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: Company std. Surface: TiN Discount group: 103 Type: 3995 Cutting direction: right-hand Type: H R40 Material: HSS-E-PM Additional information: Internal threading Form: C Coloured ring: red ring Threads: UNF Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 11.113 Weight: 0.045 No of cutting edges: 3 Total length: 100.000 Thread length: 13.000 Groove length: 34.000 Usable length: 38.000 Norm 2: DIN/ANSI Wrench opening 1: 6.150 Core hole Ø: 9.90 Shank Ø: 8.204 Nominal dimension thread: 7/16 – 20 External Ø: 11.200 Pitch thread/inch: 20.000 Reach length: 44.000 Statistical goods number: 82074010

Brand

Guhring
