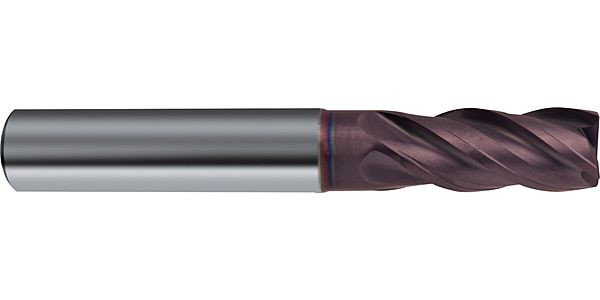

Guhring 7/16 Endmill 4 Flute Carbide Fire Coat

Description

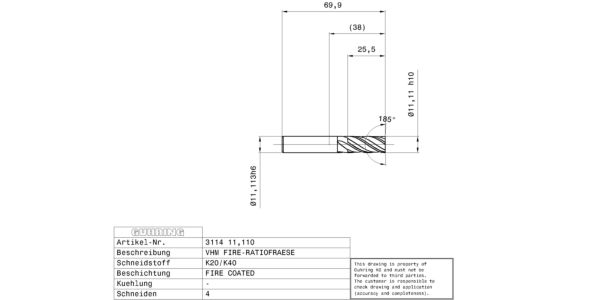

Ratio end mills standard RF 100 U / Ø 11.113 mm / h10 / Company std. / Solid carbide / FIRE / Type: N / Cutting direction: right-hand

Weight	0.0830 kg
Dimensions	Length 69.85cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: ~DIN 6535-HA Nominal Ø tolerance field: h10 Internal cooling: Without Norm: Company std. Surface: FIRE Discount group: 106 Type: 3114 Cutting direction: Right-hand Type: N Material: Solid carbide No of cutting edges: 4 Helix angle: 35/38 Code no.: 11.110 Weight: 0.083 Total length: 69.850 Groove length: 32.946 Usable length: 32.946 Shank Ø: 11.113 Nominal Ø mm: 11.113 Nominal Ø fractional: 7/16 Cutting edge length: 25.500 Reach length: 38.000 Corner chamfer: 0.200 Statistical goods number: 82077010
