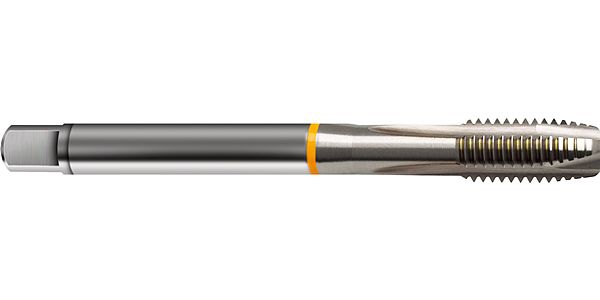

Guhring 7/16 x 20 UNF GunNose Tap HSS-E Yellow band

Connection code machine side: straight shank
Internal cooling: without
Norm: ~DIN 374
Surface: bright
Discount group: 103
Type: 908
Cutting direction: right-hand
Type: N
Material: HSS-E
Additional information: Internal threading
Form: B
Coloured ring: yellow ring
Threads: UNF
Tolerance class thread: 2B
Hole type: through hole
Groove: straight-fluted cutting edges
Chamfer lead length: 3.5-5,5
Code no.: 11.113
Weight: 0.047
No of cutting edges: 3

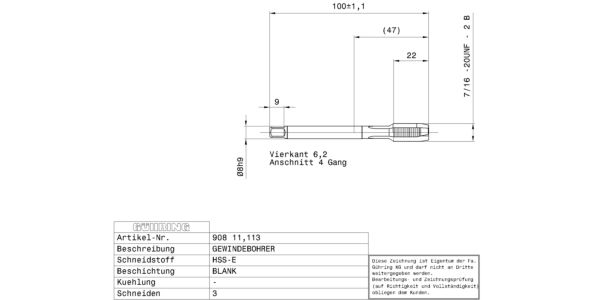

Total length: 100.000
Thread length: 22.000
Groove length: 38.000
Usable length: 42.000
Norm 2: DIN 2184-1
Wrench opening 1: 6.200
Neck Ø: 7.800
Core hole Ø: 9.90
Shank Ø: 8.000
Nominal dimension thread: 7/16 – 20
Pitch: 1.270
External Ø: 11.200
Pitch thread/inch: 20.000
Reach length: 47.000
Statistical goods number: 82074010
