Guhring 7/8-14 UNF 2B PM HSS-E Spiral Tap TiN Coated Red Ring

Product Code: 3995 22,225

$413.16$375.60 Ex. GST

Product Code: 3995 22,225 SKU 3995 22,225 Category CUTTING TOOLS (HSS & Carbide)

Guhring 7/8-14 UNF 2B PM HSS-E Spiral Tap TiN Coated Red Ring

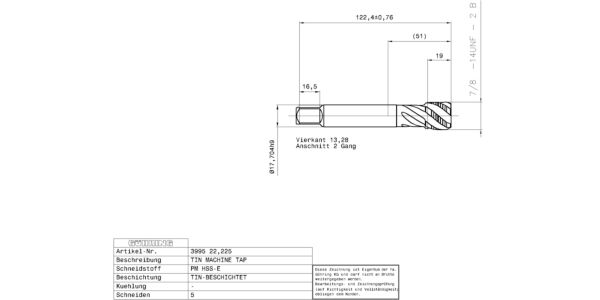

Guhring 7/8-14 UNF 2B PM HSS-E Spiral Tap TiN Coated Red Ring - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 7/8 – 14 / 2B / Company std. / DIN/ANSI / HSS-E-PM / TiN / Type: H R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.2330 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: Company std. Surface: TiN Discount group: 103 Type: 3995 Cutting direction: right-hand Type: H R40 Material: HSS-E-PM Additional information: Internal threading Form: C Coloured ring: red ring Threads: UNF Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 22.225 Weight: 0.233 No of cutting edges: 5 Total length: 125.000 Thread length: 19.000 Groove length: 40.000 Usable length: 44.000 Norm 2: DIN/ANSI Wrench opening 1: 13.280 Core hole Ø: 20.40 Shank Ø: 17.704 Nominal dimension thread: 7/8 – 14 External Ø: 22.320 Pitch thread/inch: 14.000 Reach length: 51.000 Statistical goods number: 82074010

Brand

Guhring
