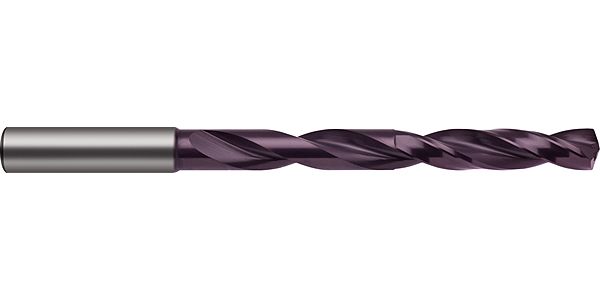

Guhring 7 x D ratio drill thru cool Carbide Fire Coated

Description

Ratio drills with coolant ducts Solid carbide / Ø 16.000 mm m7 / 7xD / Company std. / Surface: nanoFIRE / Cutting direction: right-hand / facet point grinding 140°
Execution: Web thinning ≥ Ø 3.000 mm • facet point grind • main cutting edge form straight • optimised cutting edge geometry
Application: structural and case hardened steels • free-cutting steels, heat-treatable steels • steels (alloyed/unalloyed) up to 1200 N/mm² • cast materials • bronze, brass • high-alloyed AlSi alloys

Additional information

Weight	0.3620 kg
Dimensions	Length 204cm x Width cm x Depth cm
barcode

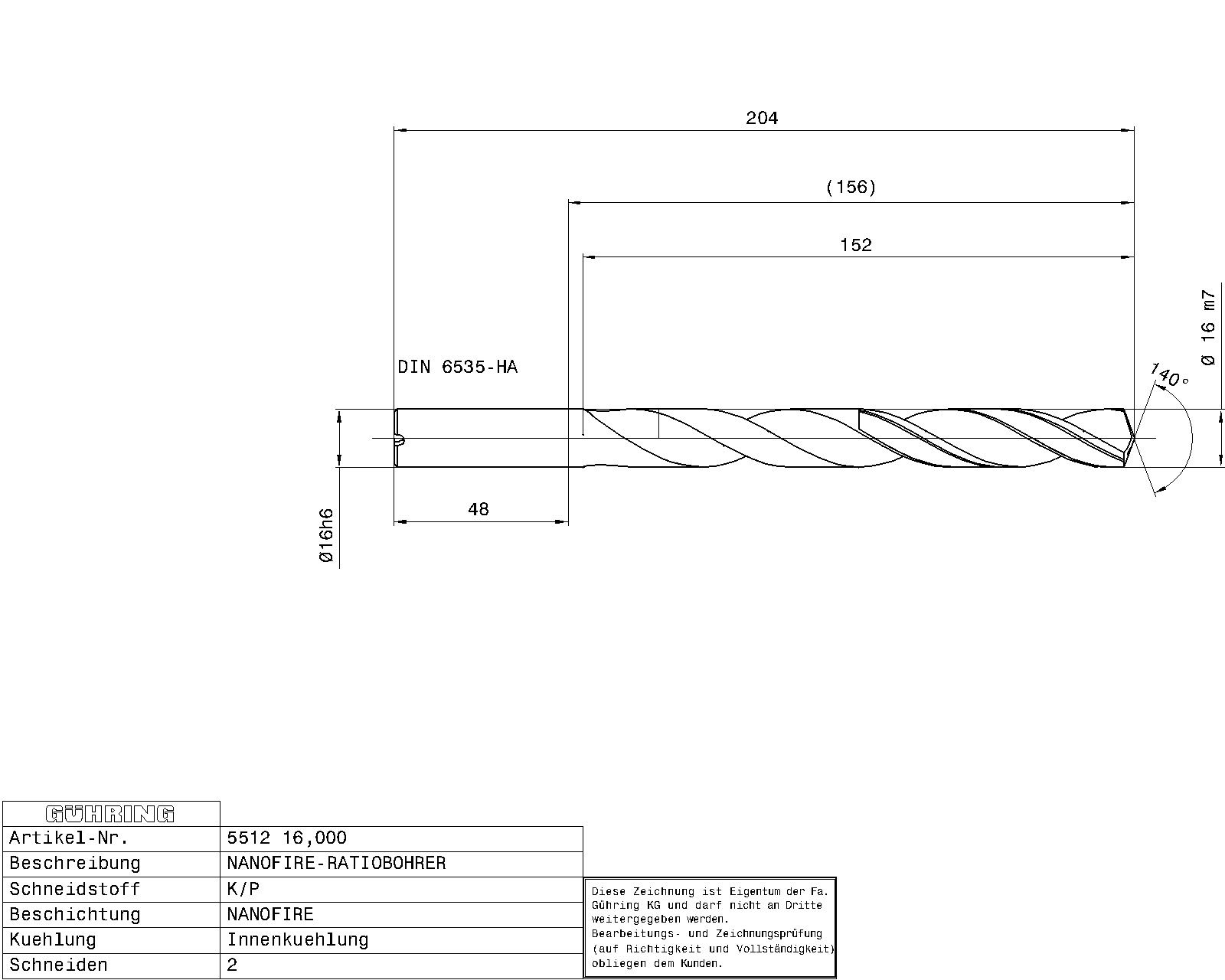

Additional Information	Point grinding: Facet point grinding Connection code machine side: DIN 6535-HA Ø-Thinning: 3.000 Nominal Ø tolerance field: m7 Internal cooling: With Norm: Company std. Surface: nanoFIRE Discount group: 155 Type: 5512 Cutting direction: Right-hand Type: RT 100 U Point angle: 140° Material: Solid carbide Variety: 48 Code no.: 16.000 Weight: 0.362 No of cutting edges: 2 Total length: 204.000 Groove length: 152.000 Usable length: 131.000 Shank Ø: 16.000 Shank length: 48.000 Nominal Ø (mm): 16.000 Statistical goods number: 82075050
