Guhring 80 x D Carbide Gun drills Carbide TiCN Coated

Product Code: 5642 15,450

$844.70$767.91 Ex. GST

Product Code: 5642 15,450 SKU 5642 15,450 Category

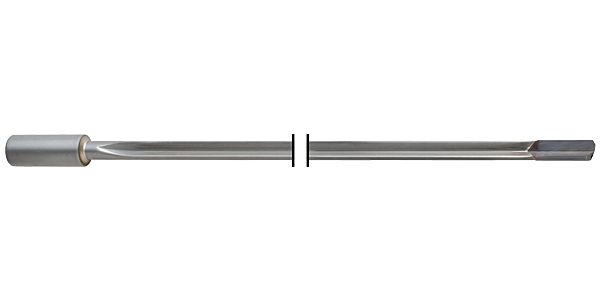

Guhring 80 x D Carbide Gun drills Carbide TiCN Coated

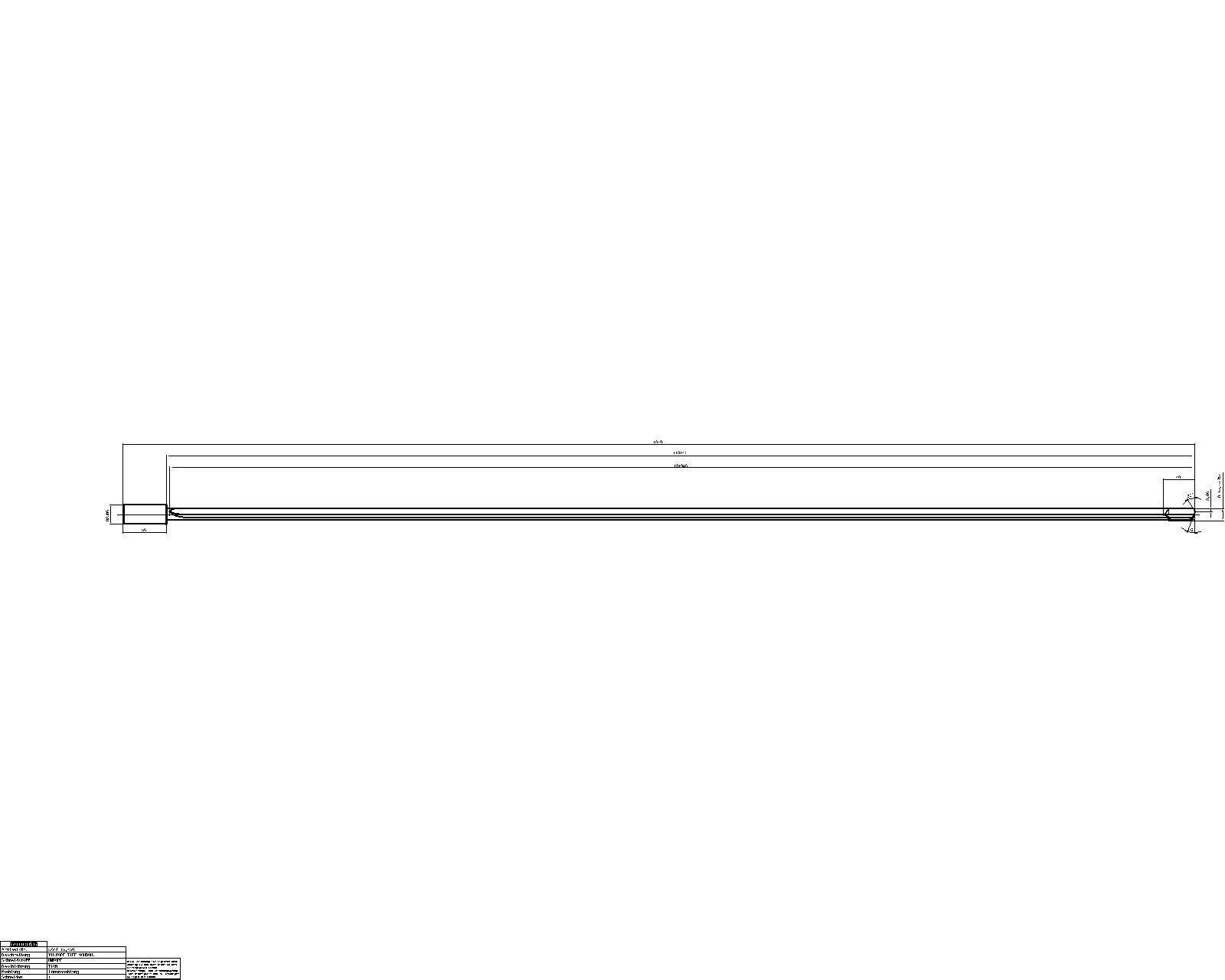

Guhring 80 x D Carbide Gun drills Carbide TiCN Coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Single-fluted gun drills EB 80 / Ø 15.450 mm / 80xD / Company std. / Carbide / TiCN / Type: EB 80 / Cutting direction: right-hand /
Execution: head form G /
Application: max. flute length per tool 40xD, for larger drilling depths apply art. no. 5641 as first tool

Additional information

Weight 1.4590 kg
Dimensions
barcode
Additional Information

Connection code machine side: DIN 6535-HA
Nominal Ø tolerance field: h5
Internal cooling: with
Norm: Company std.
Surface: TiCN
Discount group: 123
Type: 5642
Cutting direction: right-hand
Type: EB 80
Material: Carbide
Identification (Article No.): ERWEITERT
(Variety): 48
Code no.: 15.450
Weight: 1.459
No of cutting edges: 1
Total length: 1370.000
Groove length: 1310.000
Shank Ø: 25.000
Shank length: 56.000
Nominal Ø mm: 15.450
Head length: 40.00
Body Ø: 14.800
Statistical goods number: 82075050

Brand

Guhring
