Guhring 90° NC Spotting Drills Fire Coated

Description

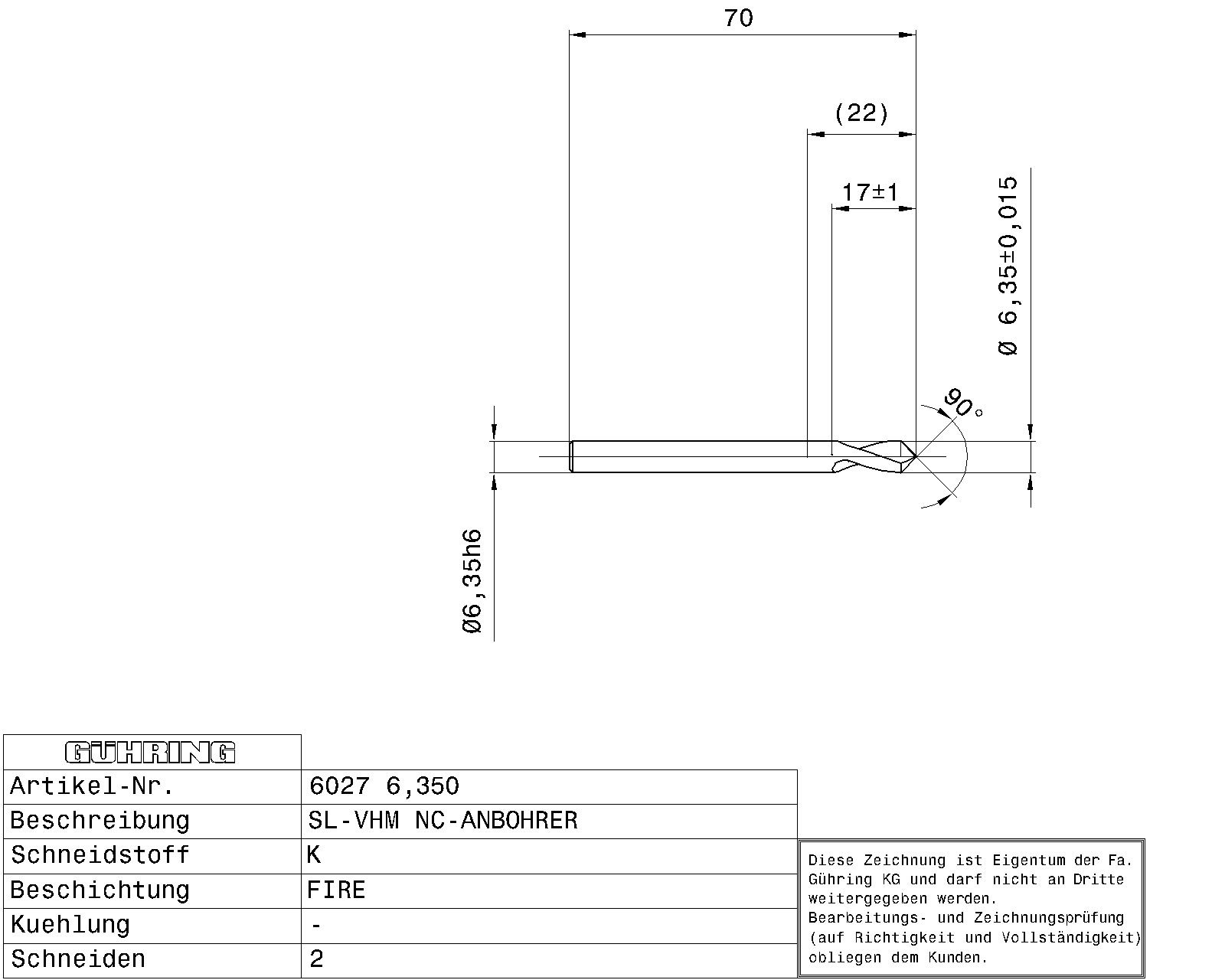

NC spotting drills 90° Solid carbide / Ø 6.350 mm ± 0.015 / ~DIN 6535-HB / Company std. / Surface: FIRE / Type: N / Cutting direction: right-hand / facet point grinding 90°
Execution: facet point grind • only suitable for spotting • ≥ Ø 6.0 mm with clamping surface shank form HB • inch dimensions are without clamping surface
Application: universal material suitability

Additional information

Weight	0.0310 kg
Dimensions
barcode	9060270063500
Additional Information	Point grinding: facet point grinding Connection code machine side: DIN 6535-HB Nominal Ø tolerance field: ± 0.015 Internal cooling: without Norm: Company std. Surface: FIRE Discount group: 155 Type: 6027 Cutting direction: right-hand Type: N Point angle: 90° Material: Solid carbide Code no.: 6.350 Weight: 0.031 Number of cutting edges: 2 Total length: 70.000 Groove length: 17.000 Usable length: 13.600 Shank Ø: 6.350 Shank length: 53.000 Nominal Ø mm: 6.350 Nominal Ø fractional: 1/4 Holder, machine side: ~DIN 6535-HB Statistical goods number: 82075050

Need Technical Advice?

Description

Additional information

Brand

Guhring
