Guhring BSP Gun Tap HSS-E Blue Bland Sirius Coated G 1/16

Description

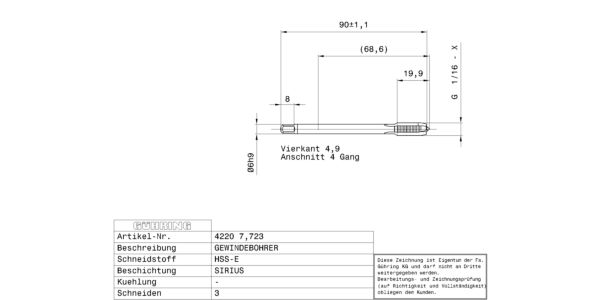

Machine taps f. BSP-threads G1/16 / 3xD / DIN 5156 / DIN 2184-1 / HSS-E / Sirius / Type: VA / Form: B / through hole / Cutting direction: right-hand

Weight	0.026 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 5156 Surface: Sirius Discount group: 103 Type: 4220 Cutting direction: right-hand Type: VA Material: HSS-E Additional information: Internal threading Form: B Coloured ring: blue ring Threads: BSP Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 7.723 Weight: 0.026 No of cutting edges: 3 Total length: 90.000 Thread length: 18.000 Groove length: 26.000 Usable length: 30.000 Norm 2: DIN 2184-1 Wrench opening 1: 4.900 Core hole Ø: 6.80 Shank Ø: 6.000 Nominal dimension thread: G1/16 Pitch: 0.907 External Ø: 7.800 Shank length: 71.100 Pitch thread/inch: 28.000 Reach length: 69.000 Statistical goods number: 82074010
