Guhring BSP Gun Taps HSS-E Gold Band G 3/4

Description

Machine taps f. BSP-threads G3/4 / DIN 5156 / DIN 2184-1 / HSS-E / steam tempered / Type: N / Form: B / through hole / Cutting direction: right-hand

Weight	0.3510 kg

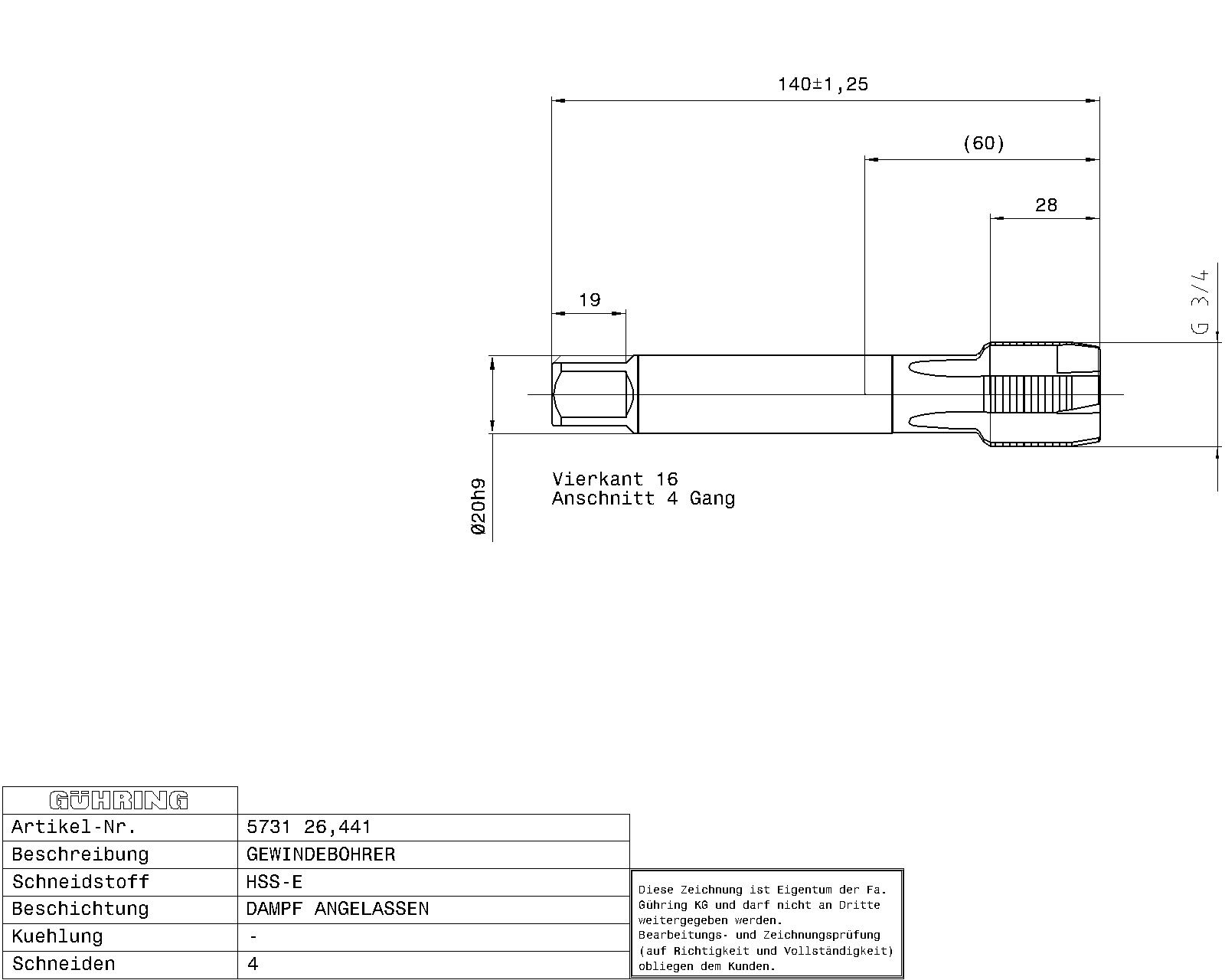

Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 5156 Surface: steam tempered Discount group: 203 Type: 5731, N Material: HSS-E Additional information: Internal threading Form: B Coloured ring: gold ring Threads: BSP Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5,5 Code no.: 26.441 Weight: 0.351 No of cutting edges: 4 Total length: 140.000 Thread length: 28.000 Groove length: 49.000 Usable length: 53.000 Norm 2: DIN 2184-1 Wrench opening 1: 16.000 Neck Ø: 19.700 Core hole Ø: 24.50 Shank Ø: 20.000 Nominal dimension thread: G3/4 Pitch: 1.814 External Ø: 26.520 Pitch thread/inch: 14.000 Reach length: 60.000 Statistical goods number: 82074010
