Guhring BSP Spiral Tap HSS-E TiAlN coated Blue Band G 3/4

Description

Machine taps f. BSP-threads G3/4 / 3xD / DIN 5156 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Weight	0.324 kg

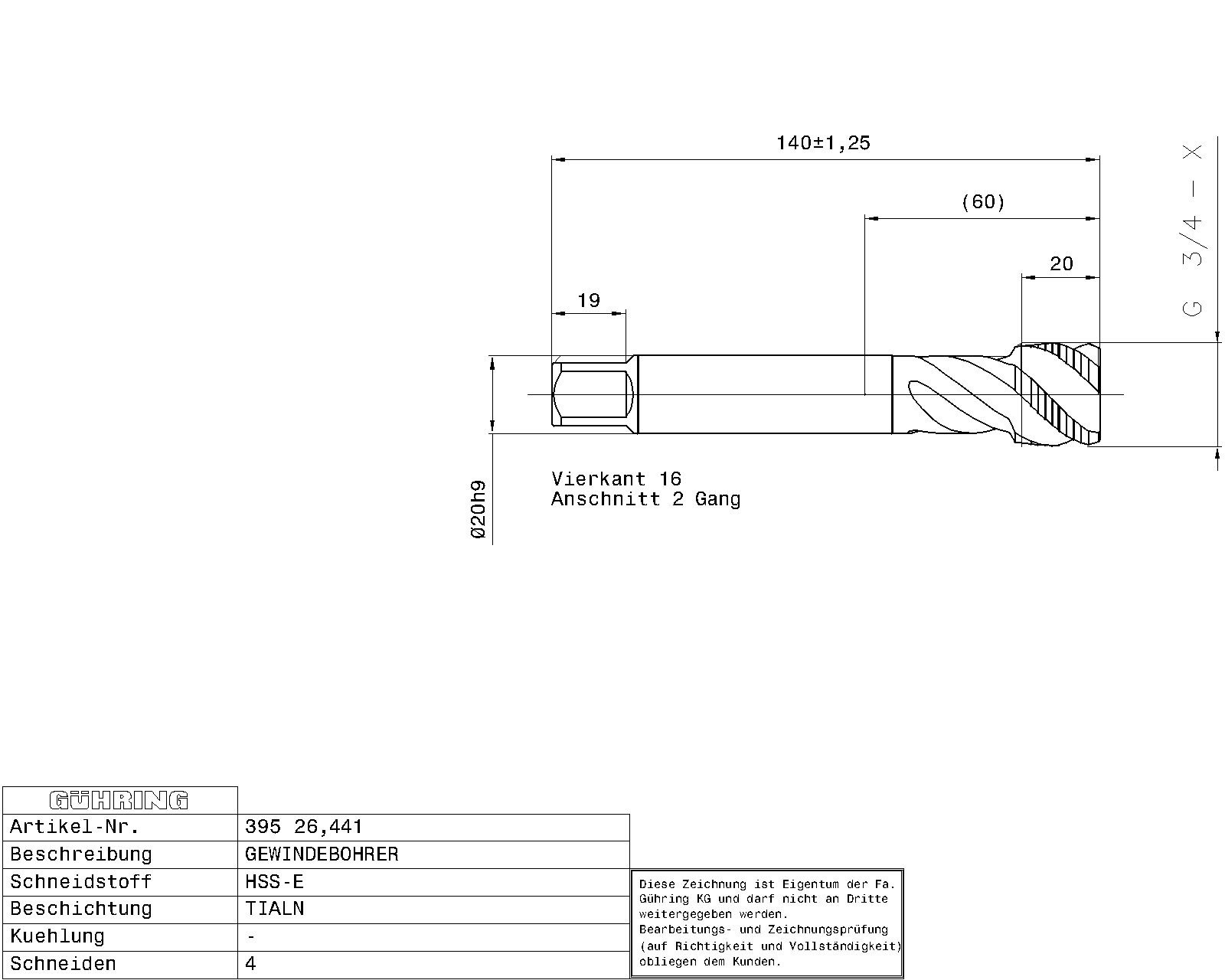

Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Internal Cooling: without Norm: DIN 5156 Surface: TiAlN Discount Group: 103 Type: 395 Cutting Direction: right-hand Type: VA R45 Material: HSS-E Additional Information: Internal threading Form: C Coloured Ring: blue ring Threads: BSP Hole Type: blind hole Groove: 45° right hand helix Chamfer Lead Length: 2-3 Code No.: 26.441 Weight: 0.324 No. of Cutting Edges: 4 Total Length: 140.000 Thread Length: 20.000 Groove Length: 49.000 Usable Length: 53.000 Norm 2: DIN 2184-1 Wrench Opening 1: 16.000 Neck Ø: 19.700 Core Hole Ø: 24.50 Shank Ø: 20.000 Nominal Dimension Thread: G3/4 Pitch: 1.814 External Ø: 26.520 Pitch Thread/Inch: 14.000 Reach Length: 60.000 Statistical Goods Number: 82074010
