Guhring BSP Spiral Tap HSS-E TiAlN coated Blue Bandv G 3/8

Description

Machine taps f. BSP-threads G3/8 / 3xD / DIN 5156 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Weight	0.085 kg

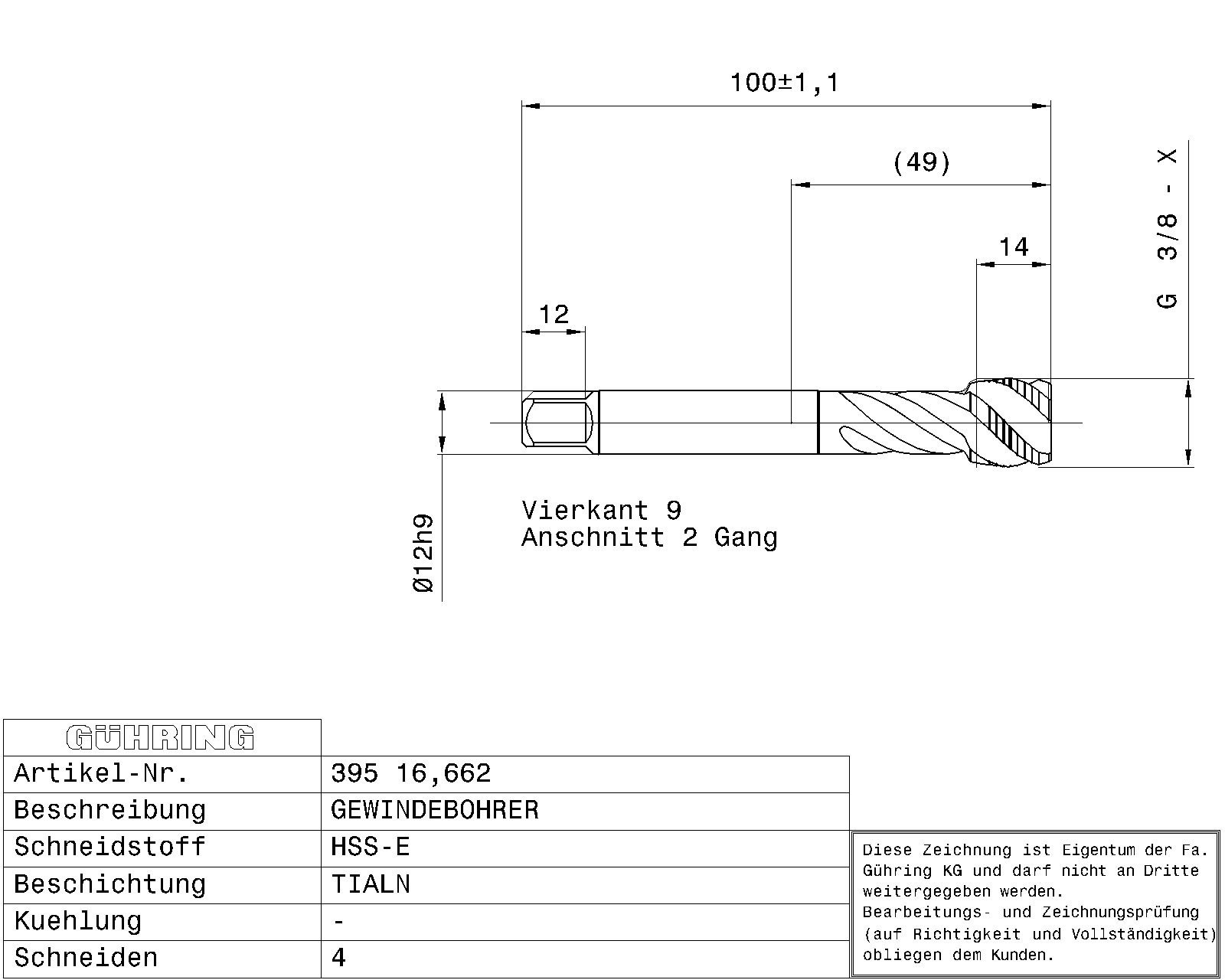

Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Internal Cooling: without Norm: DIN 5156 Surface: TiAlN Discount Group: 103 Type: 395 Cutting Direction: right-hand Type: VA R45 Material: HSS-E Additional Information: Internal threading Form: C Coloured Ring: blue ring Threads: BSP Hole Type: blind hole Groove: 45° right hand helix Chamfer Lead Length: 2-3 Code No.: 16.662 Weight: 0.085 No. of Cutting Edges: 4 Total Length: 100.000 Thread Length: 14.000 Groove Length: 40.000 Usable Length: 44.000 Norm 2: DIN 2184-1 Wrench Opening 1: 9.000 Neck Ø: 11.800 Core Hole Ø: 15.25 Shank Ø: 12.000 Nominal Dimension Thread: G3/8 Pitch: 1.337 External Ø: 16.740 Pitch Thread/Inch: 19.000 Reach Length: 49.000 Statistical Goods Number: 82074010
