Guhring BSPT Gun Tap PM-HSSE TiAlN coated 3/8

Product Code: 4683 16,662

$280.63$255.12 Ex. GST

Product Code: 4683 16,662 SKU 4683 16,662 Category CUTTING TOOLS (HSS & Carbide)

Guhring BSPT Gun Tap PM-HSSE TiAlN coated 3/8

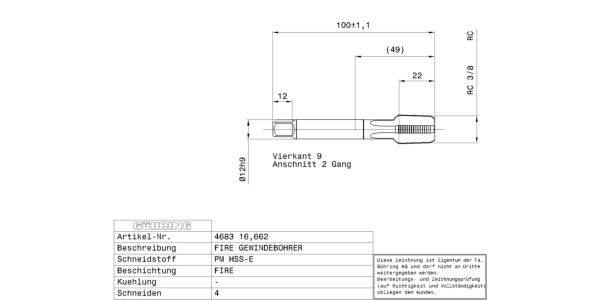

Guhring BSPT Gun Tap PM-HSSE TiAlN coated 3/8 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps f. BSP-threads Rc3/8 / 2xD / DIN 5156 / DIN 2184-1 / HSS-E-PM / FIRE / Type: H / Form: C / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 1200 N/mm²

Additional information

Weight	0.0880 kg
Dimensions
barcode	9046830166620
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 5156 Surface: FIRE Discount group: 103 Type: 4683 Cutting direction: right-hand Type: H Material: HSS-E-PM Additional information: Internal threading Form: C Threads: RC Hole type: through, blind hole Groove: straight-fluted cutting edges Chamfer lead length: 2-3 Code no.: 16.662 Weight: 0.088 No of cutting edges: 4 Total length: 100.000 Thread length: 22.000 Groove length: 40.000 Usable length: 44.000 Norm 2: DIN 2184-1 Wrench opening 1: 9.000 Core hole Ø: 14.30 Shank Ø: 12.000 Nominal dimension thread: Rc3/8 External Ø: 16.662 Pitch thread/inch: 19.000 Reach length: 49.000 Statistical goods number: 82074010

Brand

Guhring
