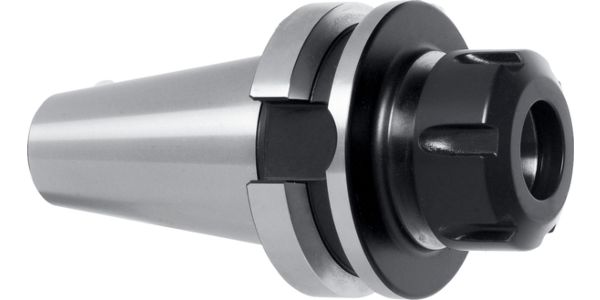

Guhring BT40 ER16 Collet Chuck

Product Code: 4245 16,140

$694.57$631.43 Ex. GST

Product Code: 4245 16,140 SKU 4245 16,140 Category
Guhring BT40 ER16 Collet Chuck

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Collet holders / BT 40 / ER16 / # 4245 / M22 X1.5 / Company std. / burnished / Execution: MAS/BT according to DIN ISO 7388-2 form JD/JF • balancing quality: G 6.3 / 15,000 rpm • coolant supply form JD/JF (* BT30 version JD without coolant supply over collar without GÜHROJET) • for collet chuck holders with adjustment angle 8° to DIN ISO 15488

Additional information

Weight 1.4630 kg
barcode
Additional Information

Connection code machine side: MAS-BT
Internal cooling: With
Norm: Company std.
Surface: Burnished
Discount group: 114
Type: 4245
Code no.: 16.140
Range: 0.5 – 10.0
Weight: 1.463
Nominal dimension thread: M22 X 1.5
External Ø: 63.000
Holder, machine side: BT 40
Size: ER16
Reach length: 160.000
Union nut Ø: 32.000
Holder form, machine side: JD/JF
Functional length: 160.000
Statistical goods number: 84661038

Brand

Guhring
