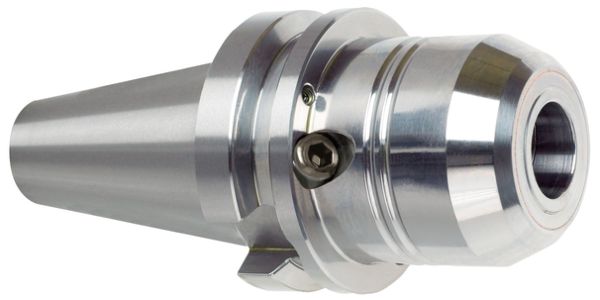

Guhring BT40 Hydraulic chuck

Product Code: 4221 12,040

$1,405.72$1,277.93 Ex. GST

Product Code: 4221 12,040 SKU 4221 12,040 Category

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

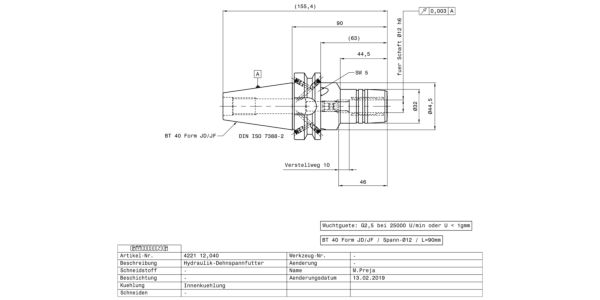

Hydraulic chucks / BT 40 / d2 12.000 mm / # 4221 / Company std. / bright / Execution: MAS/BT to DIN ISO 7388-2 Form JD/JF • BT30 in JD design without coolant supply via the collar • balancing quality: G 2.5 / 25,000 rpm
or rev. < 1 gmm • for tool shanks d1 h6 • axial length adjustment

Additional information

Weight 1.3400 kg
barcode
Additional Information

Connection code machine side: MAS-BT
Internal cooling: with
Norm: Company std.
Surface: bright
Discount group: 147
Type: 4221
Code no.: 12.040
Weight: 1.340
External Ø: 63.000
Holder, machine side: BT 40
Reach length: 90.000
Internal Ø: 12.000
Setting length: 46.000
Wrench opening 2: 5.000
Setting range length: 10.000
Offset Ø: 44.500
Offset Ø 2: 32.000
Intersection Ø: 30.000
Offset Ø 2 length: 44.500
Holder form, machine side: JD/JF
Statistical goods number: 84661038
Art.no accessories 2: 4912 5.000

Brand

Guhring
