$492.45$447.68 Ex. GST

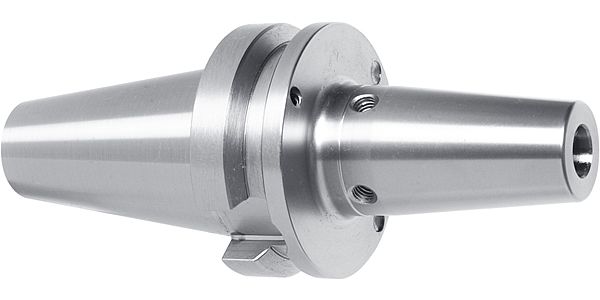

Shrink fit chucks / BT 40 / d2 25.000 mm / # 4739 / M16 x 1 / Company std. / bright / Execution: MAS/BT to DIN ISO 7388-2 Form JD/JF • BT30 in JD design without coolant supply via the collar • balancing quality: G 2.5 / 25,000 rpm
or rev. < 1 gmm • for tool shanks d1 h6 • axial length adjustment • balancing thread 4xM6/6xM6 • concentricity < 3 μm
l1 from 130 mm = 4 μm
| Weight | 2 kg |
|---|---|
| Dimensions | |
| barcode | |
| Additional Information | Connection code machine side: MAS-BT |
