Guhring Carbide Chamfer Milling Cutter 90 DEG. 4 Flute TiAlN-Coated

Description

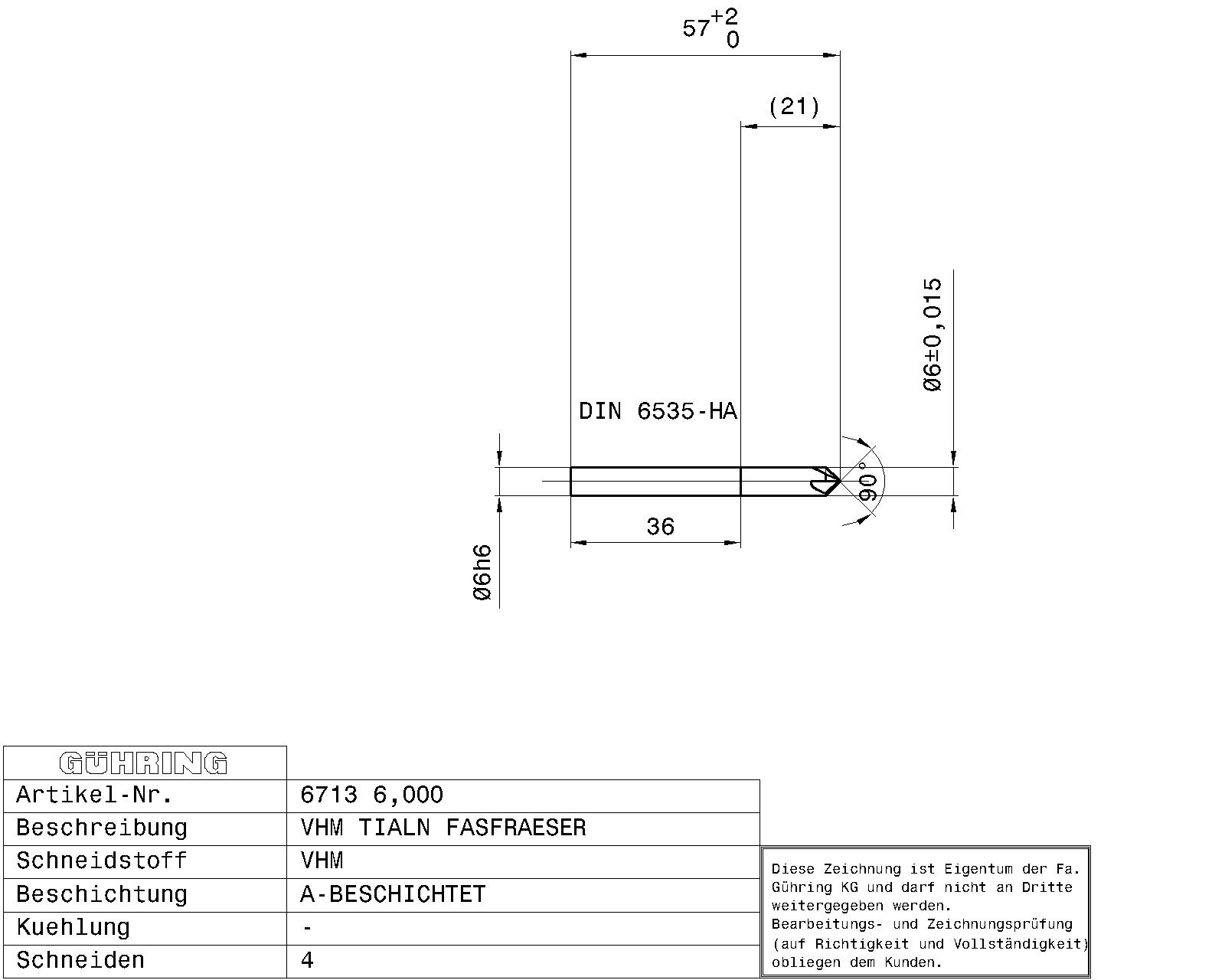

Chamfering milling cutters 90° / Ø 6.000 mm / js9 / Company std. / Solid carbide / TiAlN / Type: N / Cutting direction: right-hand

Weight	0.0250 kg
Dimensions
barcode
Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: js9 Internal cooling: without Norm: Company std. Surface: TiAlN Discount group: 117 Type: 6713 Cutting direction: right-hand Type: N Point angle: 90 Material: Solid carbide No of cutting edges: 4 (Variety): ≤ 55 Helix angle: 7 Code no.: 6.000 Weight: 0.025 Total length: 57.000 Groove length: 6.200 Shank Ø: 6.000 Point grinding: relieved cone Nominal Ø mm: 6.000 Reach length: 21.000 Tip length: 3.000 Statistical goods number: 82077010
