Guhring Carbide End Mill 4 Flute RF100 Sharp AlCrN coated

Description

Ratio milling cutters RF 100 Sharp / Ø 5.000 mm / f9 / Company std. / Solid carbide / AlCrN / Type: N / Cutting direction: right-hand /
Execution: especially for soft, tough and high-alloyed materials • longer cutting edge than DIN 6527 L • neck clearance • centre cutting

Additional information

Weight	0.0230 kg
Dimensions
barcode

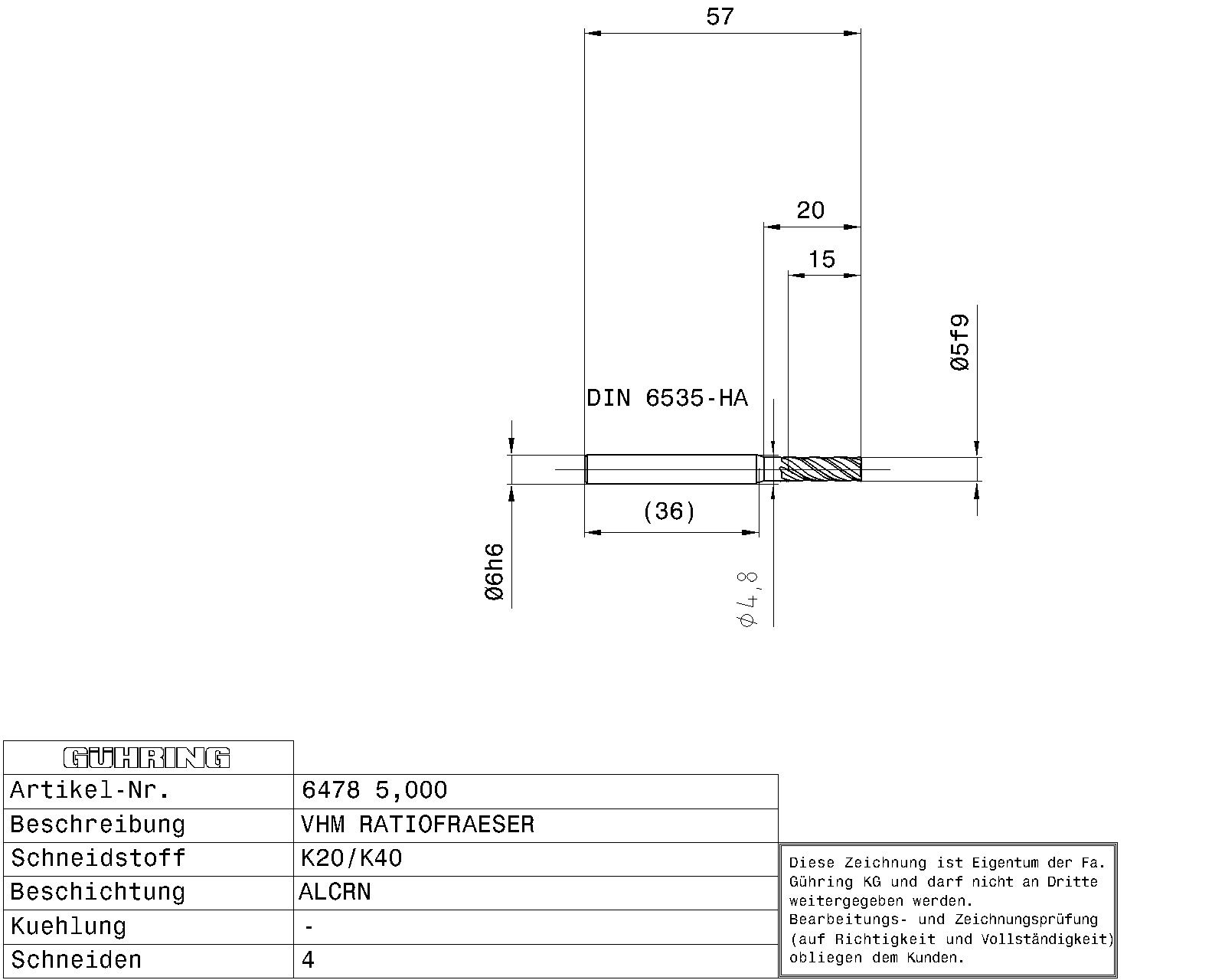

Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: f9 Internal cooling: without Norm: Company std. Surface: AlCrN Discount group: 106 Type: 6478 Cutting direction: right-hand Type: N Material: Solid carbide Identification (Article No.): New Number of cutting edges: 4 Helix angle: 38/40 Code no.: 5.000 Weight: 0.023 Total length: 57.000 Groove length: 17.250 Usable length: 20.000 Neck Ø: 4.800 Shank Ø: 6.000 Nominal Ø mm: 5.000 Cutting edge length: 15.000 Reach length: 21.000 Corner chamfer: 0.100 Statistical goods number: 82077010
