Guhring Carbide End Mill 4 Flute RF100 Sharp AlCrN Coated Long

Description

Ratio milling cutters RF 100 Sharp / Ø 1.000 mm / e8 / Company std. / Solid carbide / AlCrN / Type: N / Cutting direction: right-hand /
Execution: especially for soft, tough and high-alloyed materials • medium length version • neck clearance • centre cutting

Additional information

Weight	0.0140 kg
Dimensions
barcode

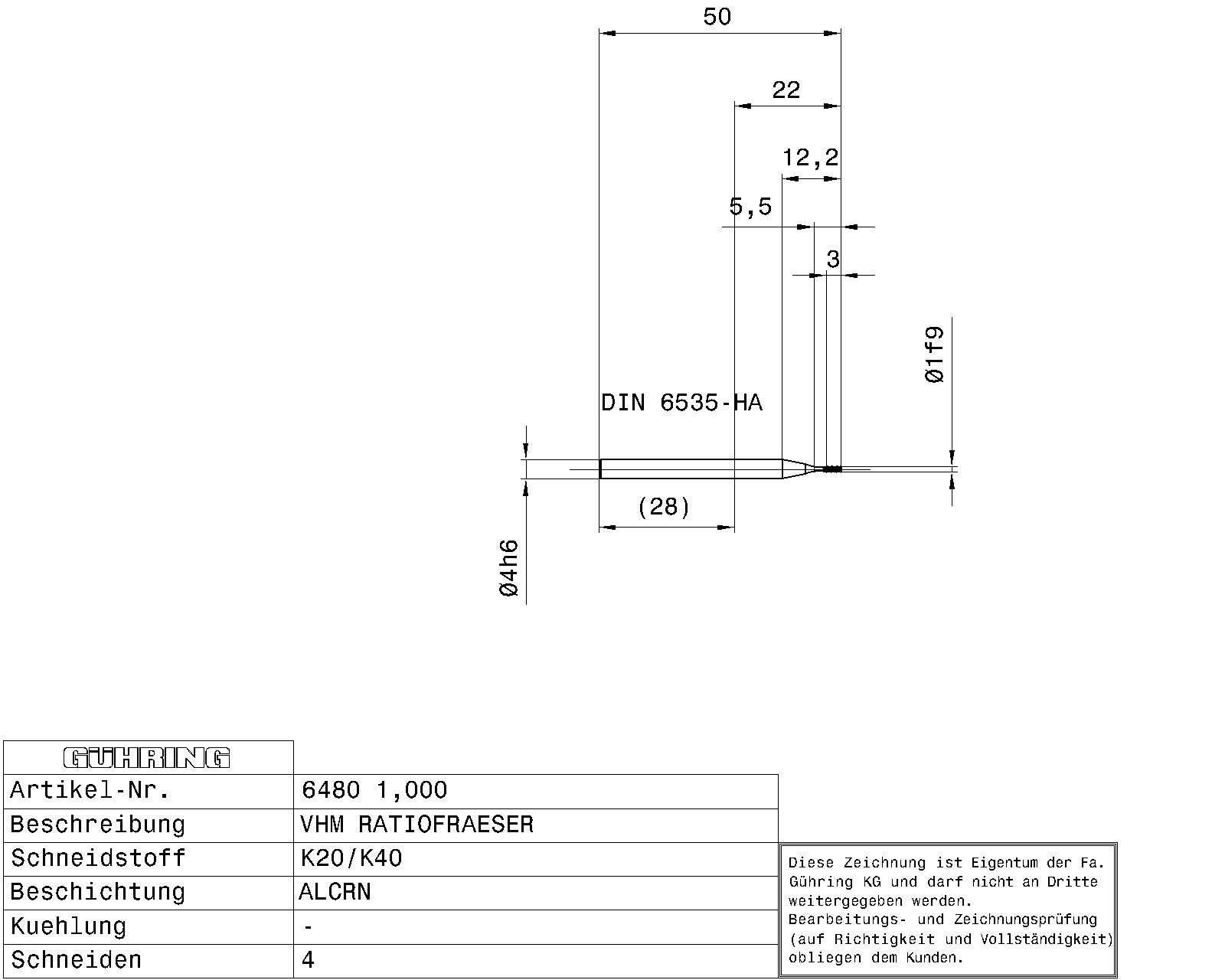

Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: f9 Internal cooling: without Norm: Company std. Surface: AlCrN Discount group: 106 Type: 6480 Cutting direction: right-hand Type: N Material: Solid carbide Identification (Article No.): New Number of cutting edges: 4 Helix angle: 38/40 Code no.: 1.000 Weight: 0.014 Total length: 50.000 Groove length: 3.800 Usable length: 5.500 Neck Ø: 0.920 Shank Ø: 4.000 Nominal Ø mm: 1.000 Cutting edge length: 3.000 Reach length: 22.000 Corner chamfer: 0.020 Intersection Ø: 1.990 Statistical goods number: 82077010
