Guhring Carbide PowerMill 4fl End Mill Fire Coated

Description

End mills (4-fluted) / Ø 8.000 mm / e8 / Company std. / Solid carbide / FIRE / Type: N / Cutting direction: right-hand /
Execution: centre cutting

Weight	0.0450 kg

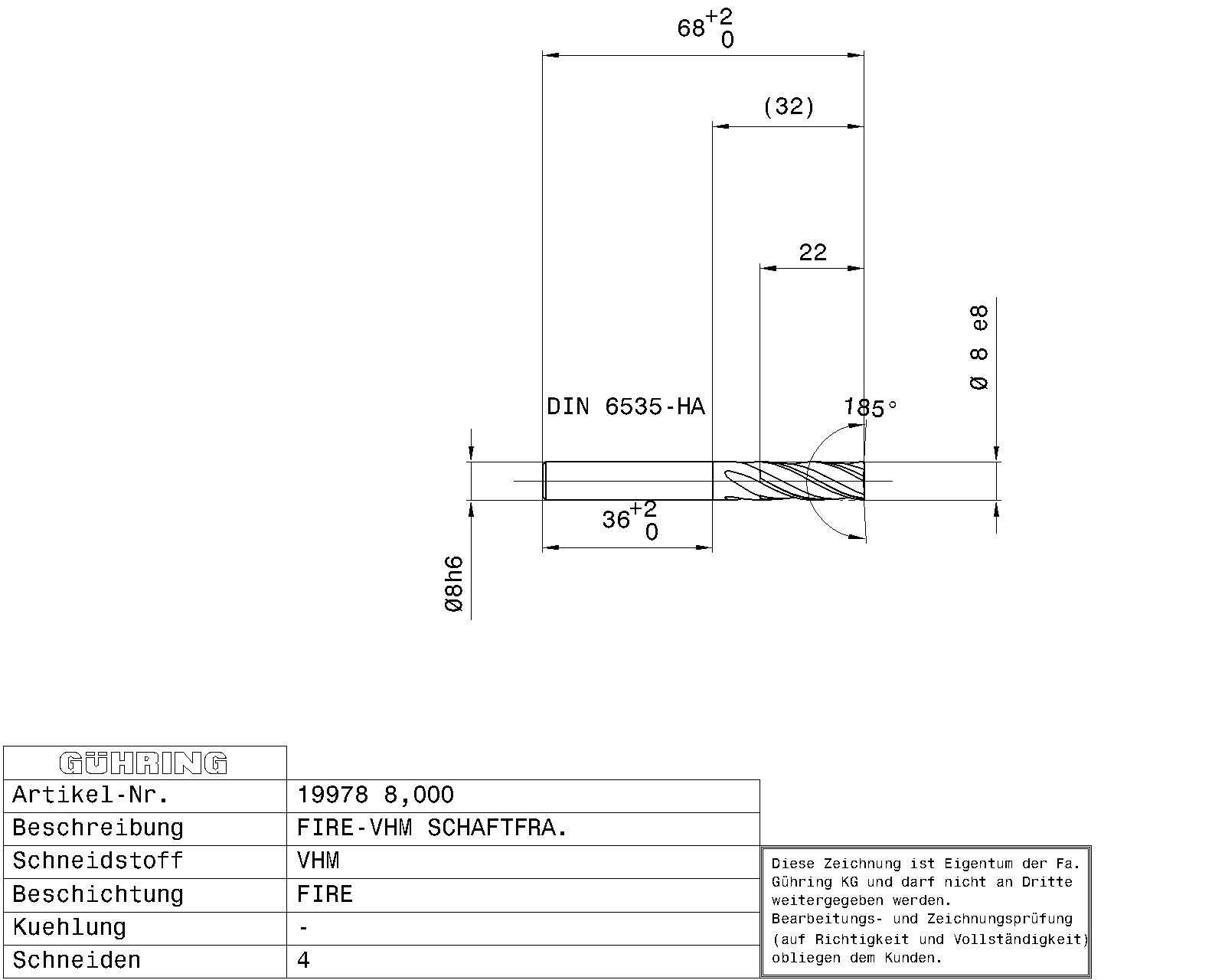

Dimensions
barcode
Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: e8 Internal cooling: Without Norm: Company std. Surface: FIRE Discount group: 206 Type: 19978 Cutting direction: Right-hand Type: N Material: Solid carbide No of cutting edges: 4 Helix angle: 30 Code no.: 8.000 Weight: 0.045 Total length: 68.000 Groove length: 30.000 Usable length: 32.000 Shank Ø: 8.000 Nominal Ø mm: 8.000 Cutting edge length: 22.000 Reach length: 32.000 Corner chamfer: 0.100 Statistical goods number: 82077010
