Guhring Carbide PowerMill 4fl End Mill Fire Coated

Description

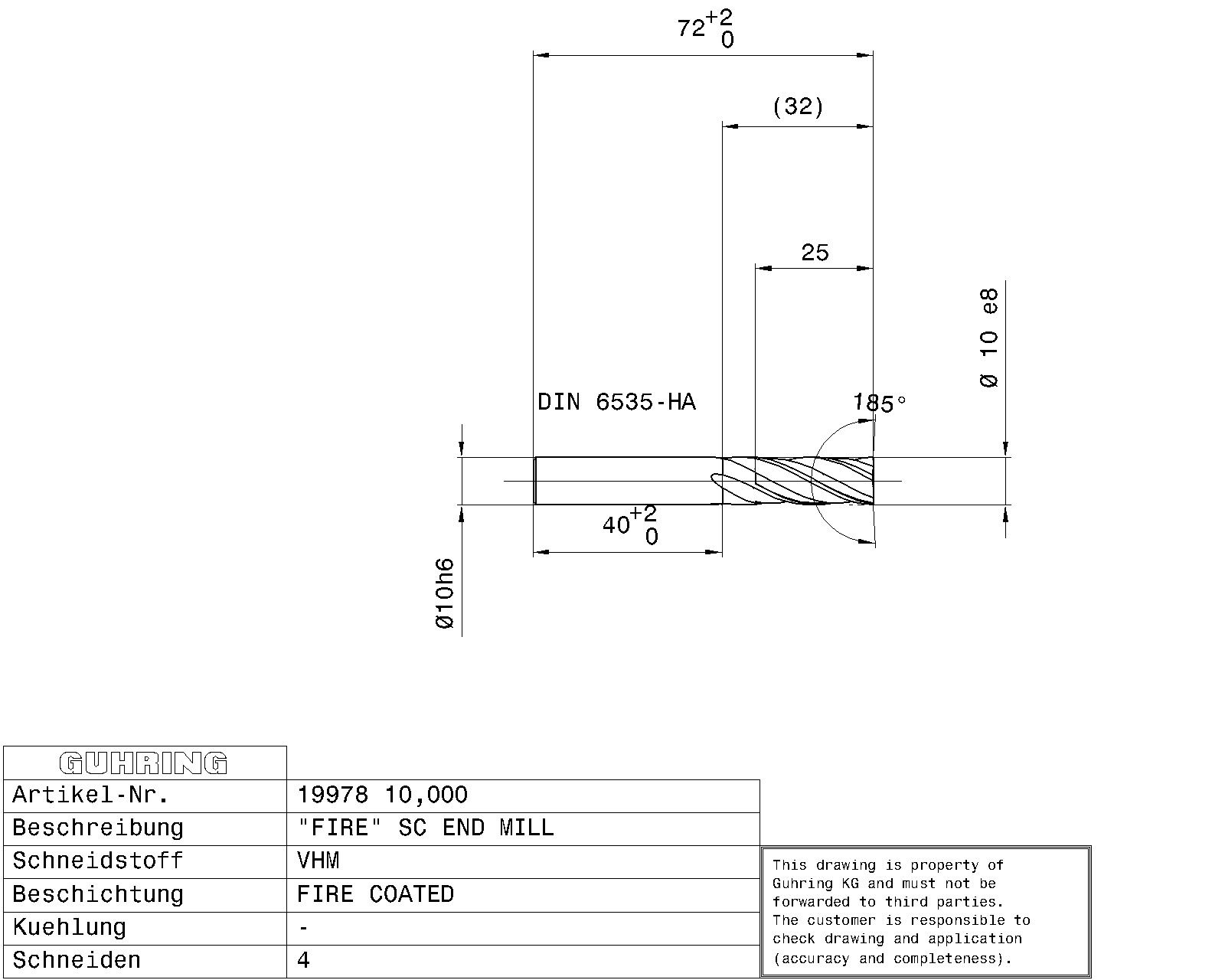

End mills (4-fluted) / Ø 10.000 mm / e8 / Company std. / Solid carbide / FIRE / Type: N / Cutting direction: right-hand /
Execution: centre cutting

Weight	0.0820 kg
Dimensions
barcode
Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: e8 Internal cooling: Without Norm: Company std. Surface: FIRE Discount group: 206 Type: 19978 Cutting direction: Right-hand Type: N Material: Solid carbide No of cutting edges: 4 Helix angle: 30 Code no.: 10.000 Weight: 0.082 Total length: 72.000 Groove length: 35.000 Usable length: 32.000 Shank Ø: 10.000 Nominal Ø mm: 10.000 Cutting edge length: 25.000 Reach length: 32.000 Corner chamfer: 0.100 Statistical goods number: 82077010
