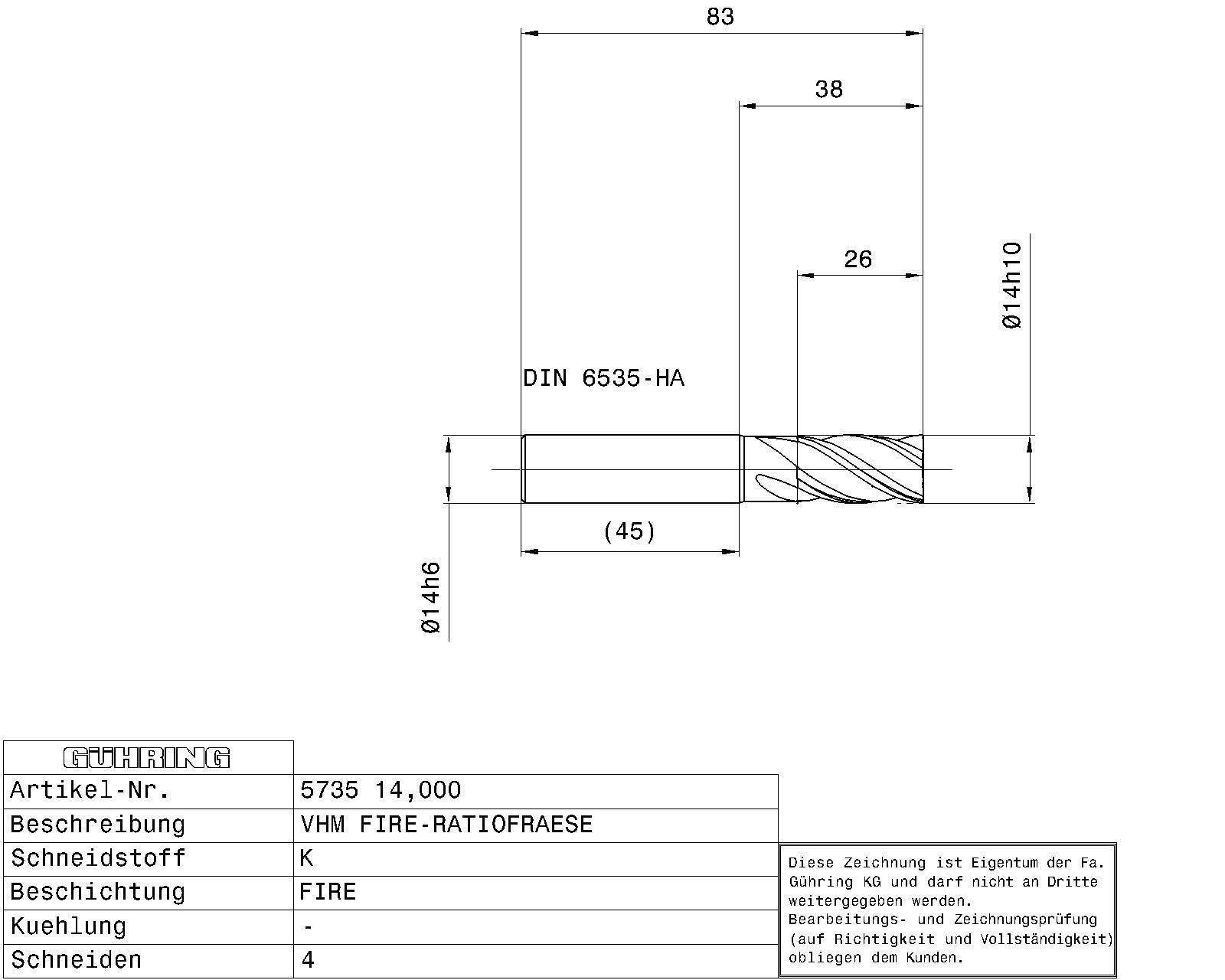

Guhring Carbide Ratio Endmill 4-fl Fire Coated

Connection code machine side: DIN 6535-HA
Nominal Ø tolerance field: h10
Internal cooling: without
Norm: DIN 6527L
Surface: FIRE
Discount group: 157
Type: 5735, N
Cutting direction: right-hand
Material: Solid carbide
No of cutting edges: 4
Form: A (Variety) ≤ 48
Helix angle: 35/38
Code no.: 14.000
Weight: 0.156
Total length: 83.000
Groove length: 35.380
Usable length: 36.000
Neck Ø: 13.500
Shank Ø: 14.000
Nominal Ø mm: 14.000
Cutting edge length: 26.000
Reach length: 38.000
Corner chamfer: 0.250
Statistical goods number: 82077010
