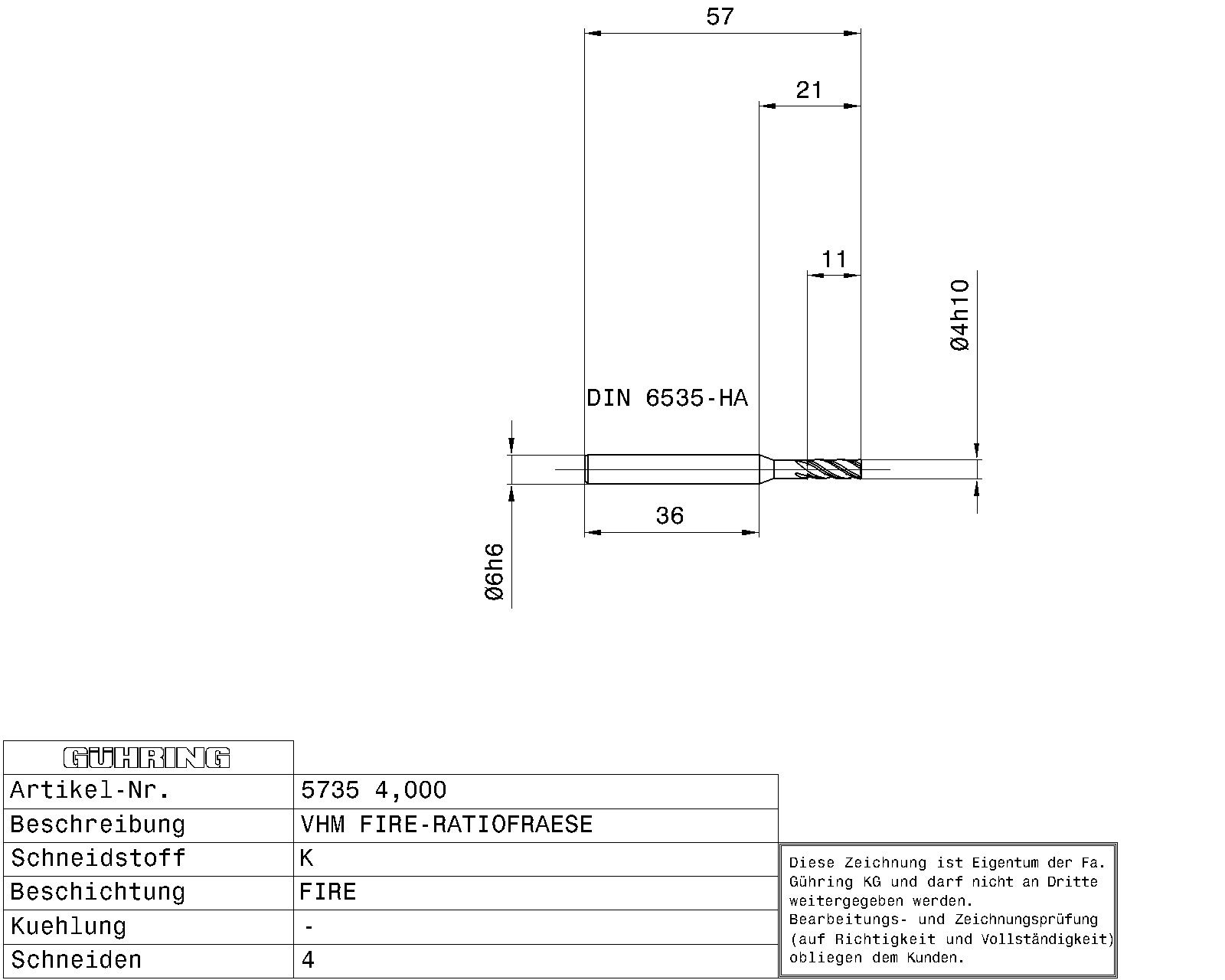

Guhring Carbide Ratio Endmill 4-fl Fire Coated

Connection code machine side: DIN 6535-HA
Nominal Ø tolerance field: h10
Internal cooling: without
Norm: DIN 6527L
Surface: FIRE
Discount group: 157
Type: 5735, N
Material: Solid carbide
No of cutting edges: 4
Form: A (Variety) ≤ 48
Helix angle: 35/38
Code no.: 4.000
Weight: 0.018
Total length: 57.000
Groove length: 13.800
Usable length: 18.000
Neck Ø: 3.800
Shank Ø: 6.000
Nominal Ø mm: 4.000
Cutting edge length: 11.000
Reach length: 21.000
Corner chamfer: 0.100
Statistical goods number: 82077010
