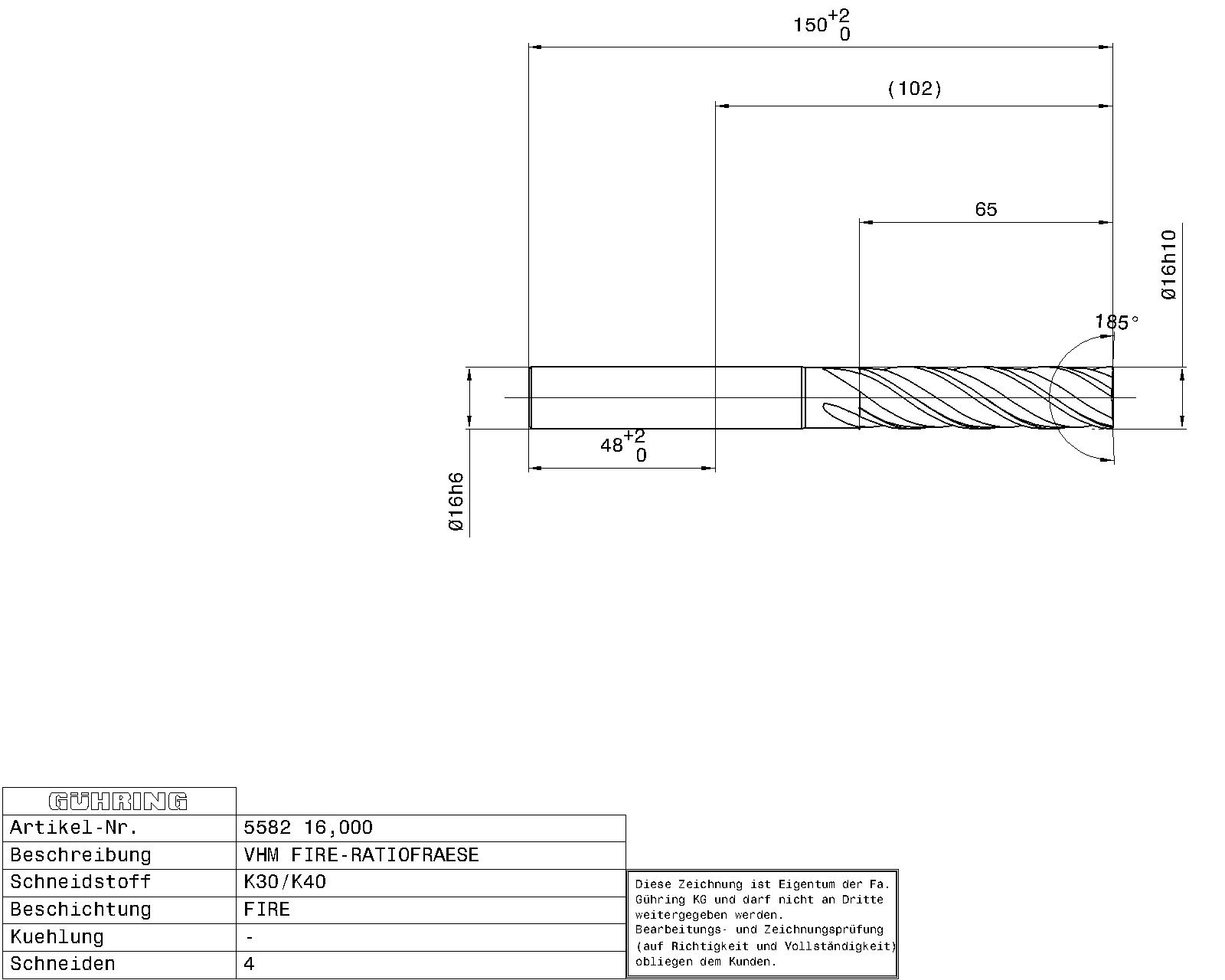

Guhring Carbide Ratio Endmill 4-fl Fire Coated Long Series

Connection code machine side: DIN 6535-HA
Nominal Ø tolerance field: h10
Internal cooling: without
Norm: Company std.
Surface: FIRE
Discount group: 157
Type: 5582
Cutting direction: right-hand
Type: N
Material: Solid carbide
No of cutting edges: 4
(Variety): ≤ 48
Helix angle: 35/38
Code no.: 16.000
Weight: 0.354
Total length: 150.000
Groove length: 75.400
Usable length: 78.000
Neck Ø: 15.500
Shank Ø: 16.000
Nominal Ø mm: 16.000
Cutting edge length: 65.000
Reach length: 102.000
Corner chamfer: 0.350
Statistical goods number: 82077010
