Guhring Carbide Ratio Endmill 4-fl For Stainless Fire Coated

Description

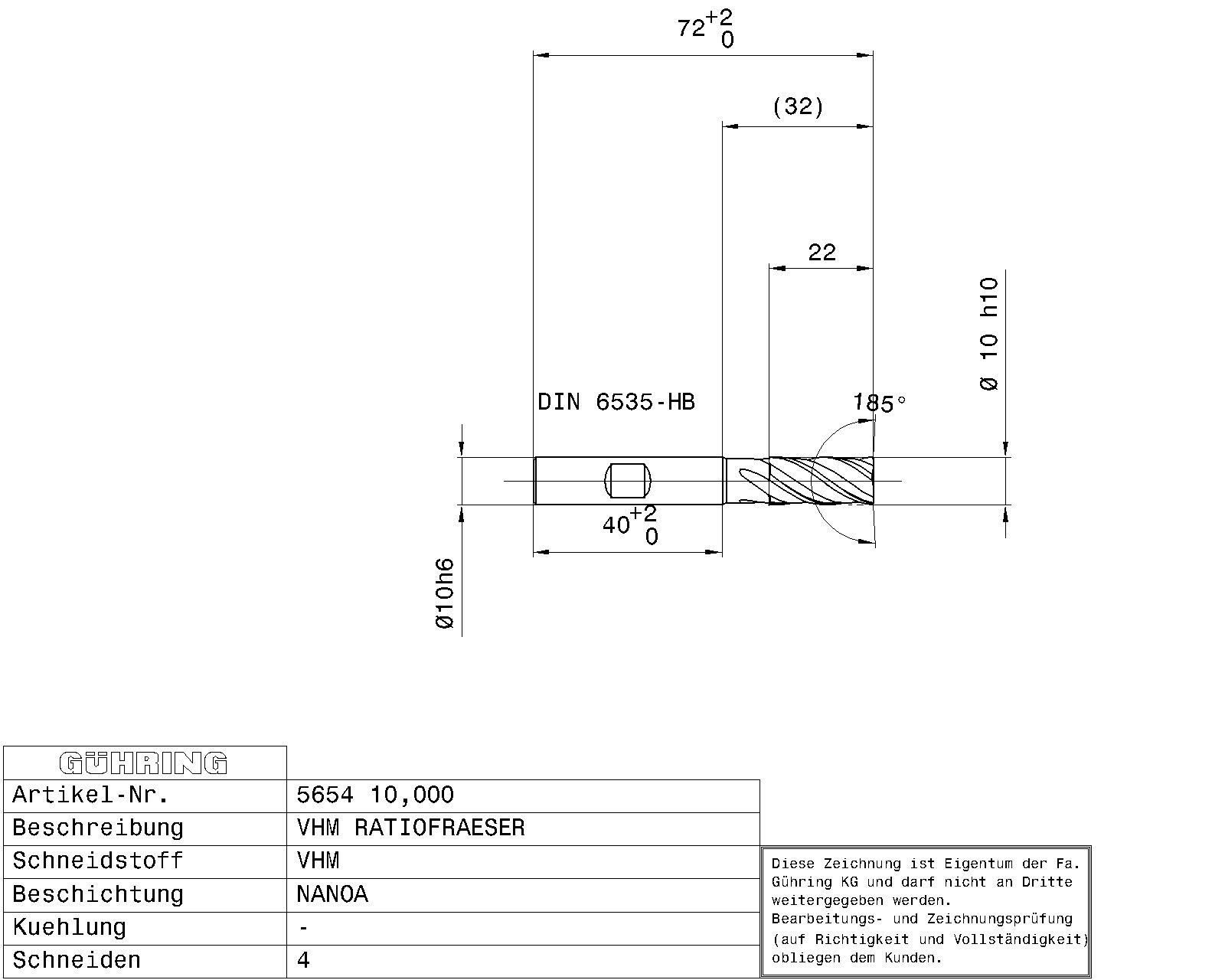

Ratio end mills RF 100 VA / Ø 10.000 mm / h10 / DIN 6527L / Solid carbide / TiAlN-nanoA / Type: N / Form: B / Cutting direction: right-hand

Weight	0.0810 kg
Dimensions
barcode	9056540100000
Additional Information	Connection code machine side: DIN 6535-HB Nominal Ø tolerance field: h10 Internal cooling: without Norm: DIN 6527L Surface: TiAlN-nanoA Discount group: 157 Type: 5654 Cutting direction: right-hand Type: N Material: Solid carbide Identification (Article No.): New No of cutting edges: 4 Form: B Helix angle: 36/38 Code no.: 10.000 Weight: 0.081 Total length: 72.000 Groove length: 29.000 Usable length: 30.000 Neck Ø: 9.500 Shank Ø: 10.000 Nominal Ø mm: 10.000 Cutting edge length: 22.000 Reach length: 32.000 Corner chamfer: 0.300 Statistical goods number: 82077010
