Guhring Carbide Ratio Endmill 4-fl For Stainless Fire Coated

Description

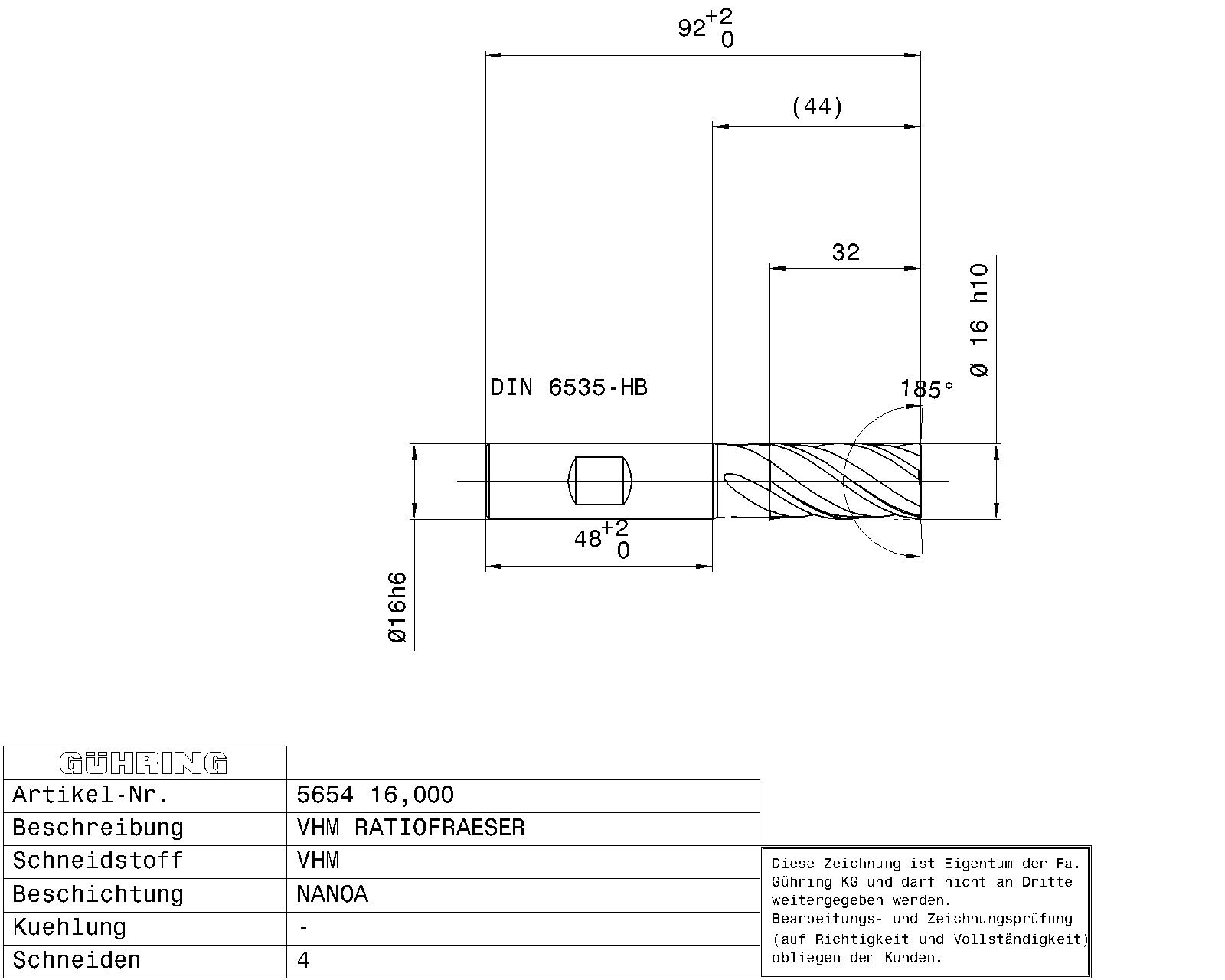

Ratio end mills RF 100 VA / Ø 16.000 mm / h10 / DIN 6527L / Solid carbide / TiAlN-nanoA / Type: N / Form: B / Cutting direction: right-hand

Weight	0.241 kg
Dimensions
barcode	9056540160000
Additional Information	Connection code machine side: DIN 6535-HB Nominal Ø tolerance field: h10 Internal cooling: without Norm: DIN 6527L Surface: TiAlN-nanoA Discount group: 157 Type: 5654 Cutting direction: right-hand Type: N Material: Solid carbide Identification (Article No.): New No of cutting edges: 4 Form: B Helix angle: 36/38 Code no.: 16.000 Weight: 0.241 Total length: 92.000 Groove length: 43.200 Usable length: 42.000 Neck Ø: 15.500 Shank Ø: 16.000 Nominal Ø mm: 16.000 Cutting edge length: 32.000 Reach length: 44.000 Corner chamfer: 0.500 Statistical goods number: 82077010
