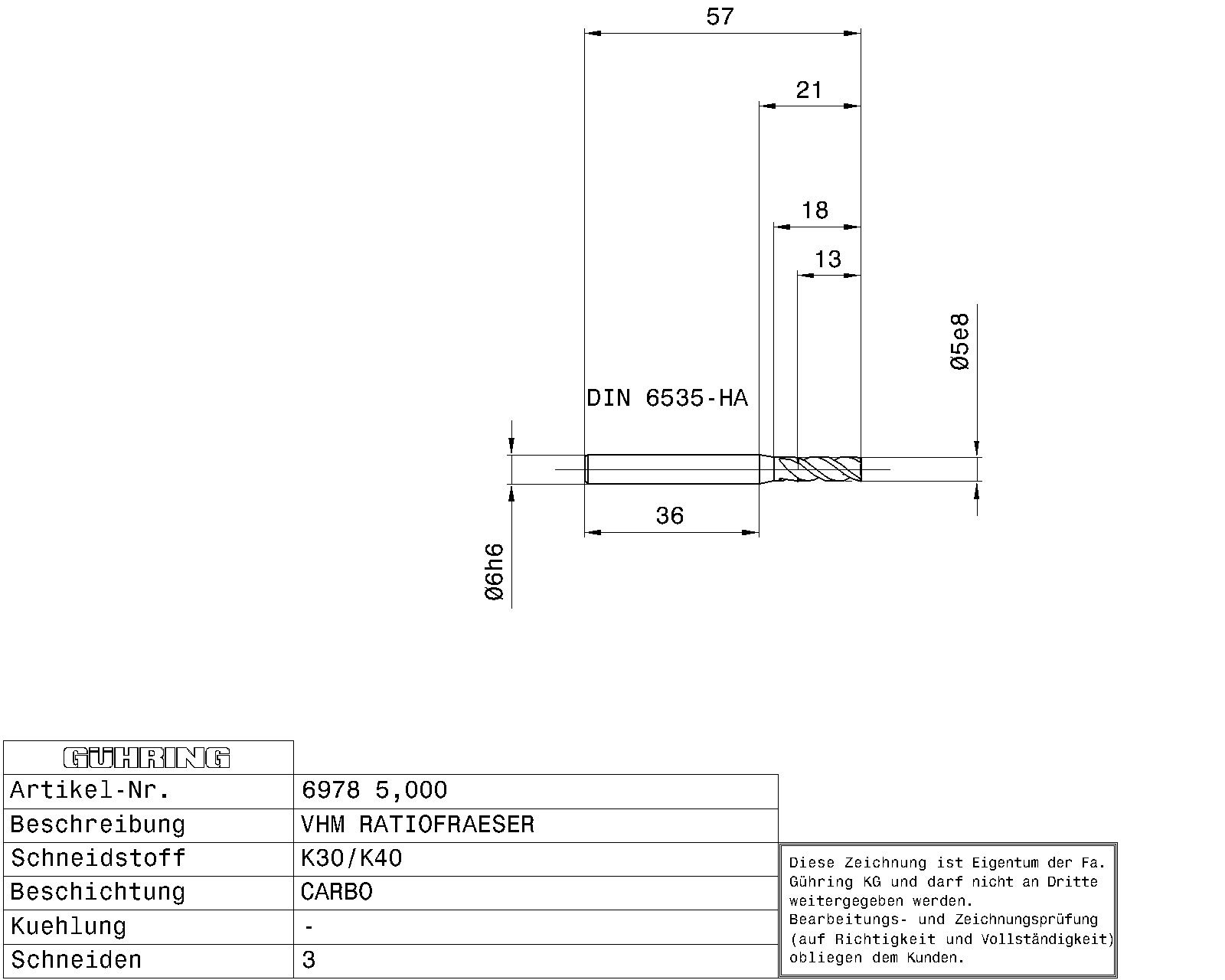

Guhring Carbide Ratio Endmill RF100A 3-fl Carbo Coated

Connection code machine side: DIN 6535-HA
Nominal Ø tolerance field: e8
Internal cooling: without
Norm: Company std.
Surface: Carbo
Discount group: 106
Type: 6978
Cutting direction: right-hand
Type: RF 100 AL
Material: Solid carbide
No of cutting edges: 3
Helix angle: 39/40/41
Code no.: 5.000
Weight: 0.021
Total length: 57.000
Groove length: 17.000
Usable length: 18.000
Neck Ø: 4.800
Shank Ø: 6.000
Nominal Ø mm: 5.000
Cutting edge length: 13.000
Reach length: 21.000
Corner chamfer: 0.050
Statistical goods number: 82077010
