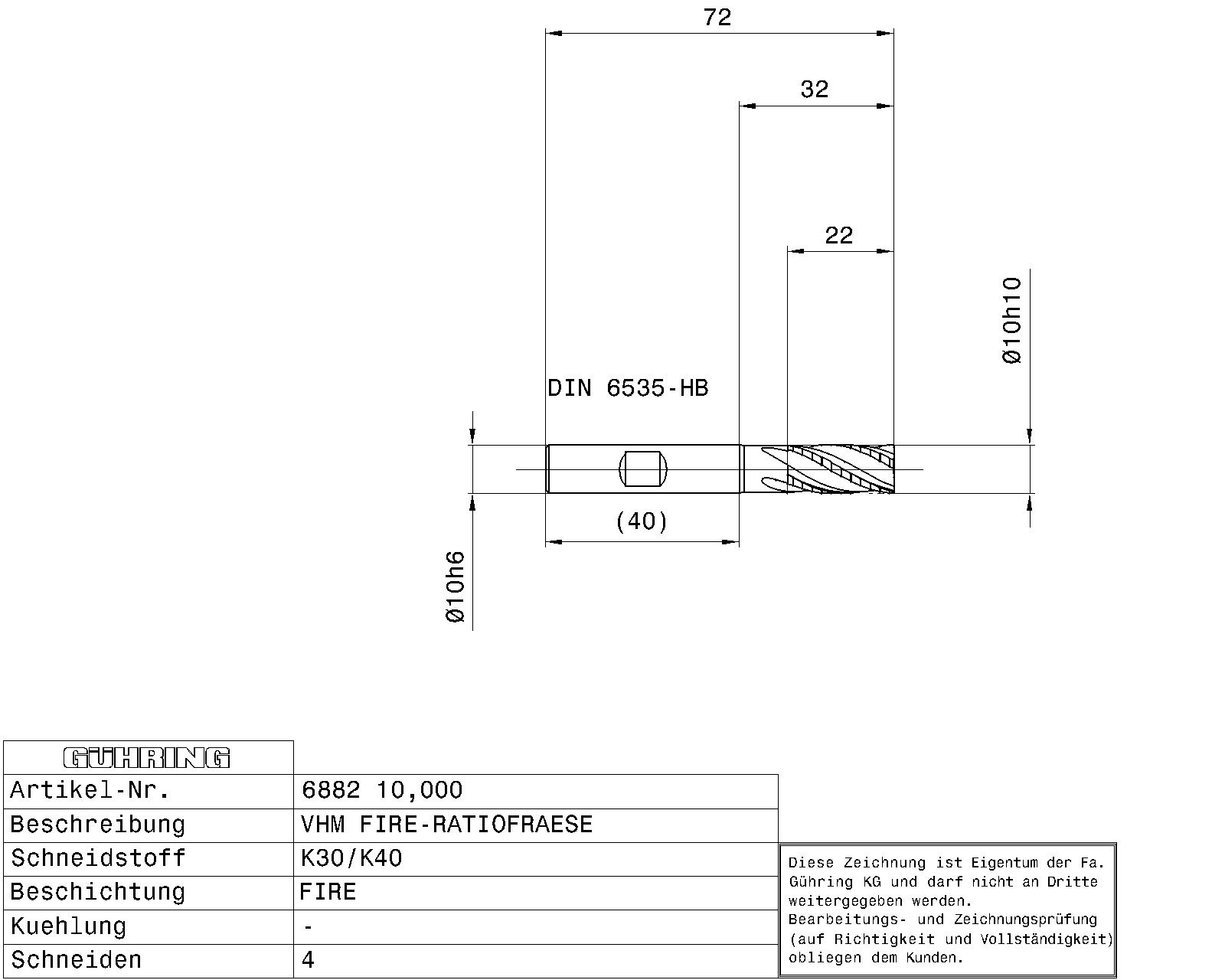

Guhring Carbide RF100 4fl RMR End Mill Fire Coated

Connection code machine side: DIN 6535-HB
Nominal Ø tolerance field: h10
Internal cooling: without
Norm: DIN 6527L
Surface: FIRE
Discount group: 106
Type: 6882
Cutting direction: right-hand
Type: HF
Material: Solid carbide
No of cutting edges: 4
Form: B
Helix angle: 30/32
Code no.: 10.000
Weight: 0.075
Total length: 72.000
Groove length: 28.000
Usable length: 30.000
Neck Ø: 9.500
Shank Ø: 10.000
Nominal Ø mm: 10.000
Cutting edge length: 22.000
Reach length: 32.000
Corner chamfer: 0.200
Statistical goods number: 82077010
