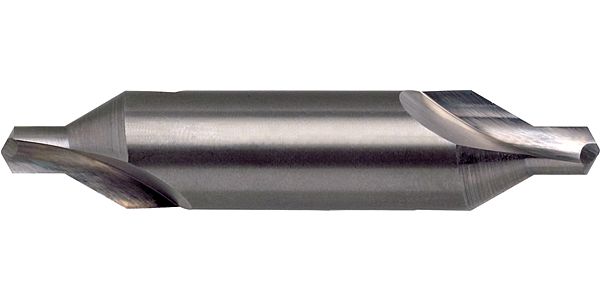

Guhring Center drills without flat Form A/R Carbide #1

Description

Centre drills without flat Solid carbide / Ø 1.250 mm / Company std. / Surface: bright / Cutting direction: right-hand / relieved cone 118°
Execution: Web thinning ≥ Ø 2.000 mm • relieved cone • without protective countersink • for centre holes to DIN 332, part 1, form A • d1 ≤ 0.8 mm: not double ended
Application: universal material suitability

Additional information

Weight	0.0030 kg
Dimensions
barcode
Additional Information	Point grinding: Yes Relieved cone: Yes Connection code machine side: Straight shank Ø-Thinning: 2.000 Internal cooling: Without Norm: Company std. Surface: Bright Discount group: 102 Type: 736 Cutting direction: Right-hand Type: N Point angle: 118 Material: Solid carbide Angle step 1: 60.00 Form: A Code no.: 1.250 Weight: 0.003 No of cutting edges: 2 Total length: 31.500 Groove length: 7.000 Shank Ø: 3.150 Nominal Ø mm: 1.250 Statistical goods number: 82075050
