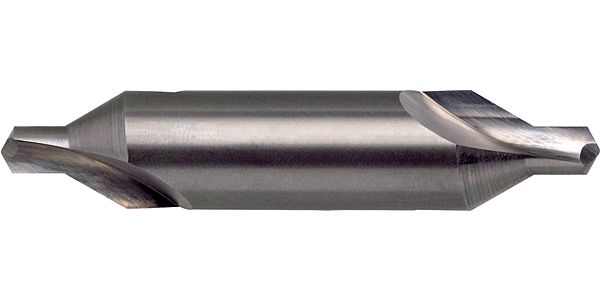

Guhring Center drills without flat Form A/R Carbide #3

Description

Centre drills without flat Solid carbide / Ø 2.500 mm / Company std. / Surface: bright / Cutting direction: right-hand / relieved cone 118°
Execution: Web thinning ≥ Ø 2.000 mm • relieved cone • without protective countersink • for centre holes to DIN 332, part 1, form A • d1 ≤ 0.8 mm: not double ended
Application: universal material suitability

Additional information

Weight	0.0130 kg
Dimensions
barcode
Additional Information	Point grinding: Yes Relieved cone: Yes Connection code machine side: Straight shank Ø-Thinning: 2.000 Internal cooling: Without Norm: Company std. Surface: Bright Discount group: 102 Type: 736 Cutting direction: Right-hand Type: N Point angle: 118 Material: Solid carbide Angle step 1: 60.00 Form: A Code no.: 2.500 Weight: 0.013 No of cutting edges: 2 Total length: 45.000 Groove length: 14.000 Shank Ø: 6.300 Nominal Ø mm: 2.500 Statistical goods number: 82075050
