Guhring Dies Metric HSS

Product Code: 151 5,000

$88.34$80.31 Ex. GST

Product Code: 151 5,000 SKU 151 5,000 Category CUTTING TOOLS (HSS & Carbide)

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

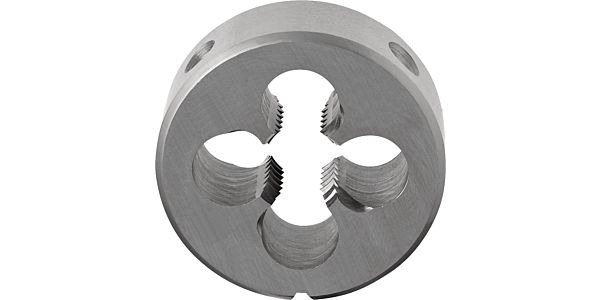

Die nuts for ISO metric threads M5 / 6g / DIN EN 22568 / HSS / bright / Form: B / Cutting direction: right-hand /
Application: P ≤ 1000 N/mm²

Weight	0.0150 kg
Dimensions
barcode
Additional Information	Internal Cooling: without Norm: DIN EN 22568 Surface: bright Discount Group: 103 Type: 151 Cutting Direction: right-hand Material: HSS Form: B Threads: M Tolerance Class Thread: 6g Chamfer Form: without chamfer Chamfer Lead Length: 1.75xP Code No.: 5.000 Weight: 0.015 No. of Cutting Edges: 4 Total Length: 7.000 Nominal Dimension Thread: M5 Pitch: 0.800 External Ø: 20.000 Pilot Hole Ø Work Piece: 4.900 Statistical Goods Number: 82074030
