Guhring Extra length twist drills series 1 HSS

Product Code: 502 4,000

$51.54$46.85 Ex. GST

Product Code: 502 4,000 SKU 502 4,000 Category
Guhring Extra length twist drills series 1 HSS
Guhring Extra length twist drills series 1 HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

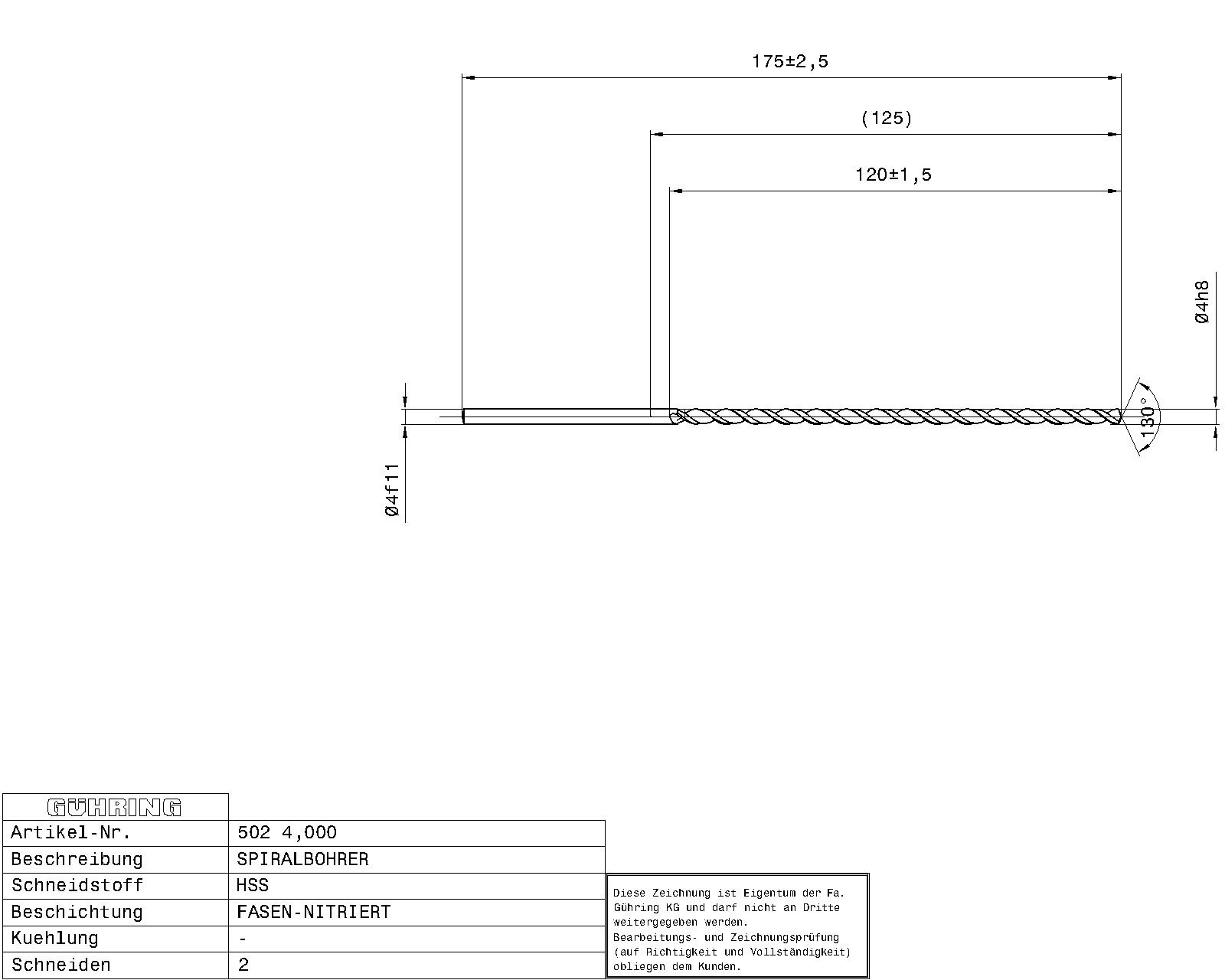

Extra length twist drills, series 1 HSS / Ø 4.000 mm h8 / ~15xD / DIN 1869 / Surface: nitrided lands / Cutting direction: right-hand / relieved cone 130°
Execution: Web thinning ≥ Ø 1.950 mm • relieved cone • wide flutes • for extremely deep holes • in case of poor chip evacuation
Application: grey cast iron and steels up to 1000 N/mm² • not recommended for: CrNi steels, stainless steels

Additional information

Weight 0.0130 kg
Dimensions
barcode
Additional Information

Point grinding: relieved cone
Connection code machine side: straight shank
Ø-Thinning: 1.950
Nominal Ø tolerance field: h8
Internal cooling: without
Norm: DIN 1869
Surface: nitrided lands
Discount group: 136
Type: 502
Cutting direction: right-hand
Type: GT 100
Point angle: 130
Material: HSS
Additional information: Series 1
Code no.: 4.000
Weight: 0.013
No of cutting edges: 2
Total length: 175.000
Groove length: 120.000
Usable length: 116.000
Shank Ø: 4.000
Shank length: 55.000
Nominal Ø mm: 4.000
Statistical goods number: 82075060

Brand

Guhring
