Guhring Extra length twist drills series 1 HSS

Description

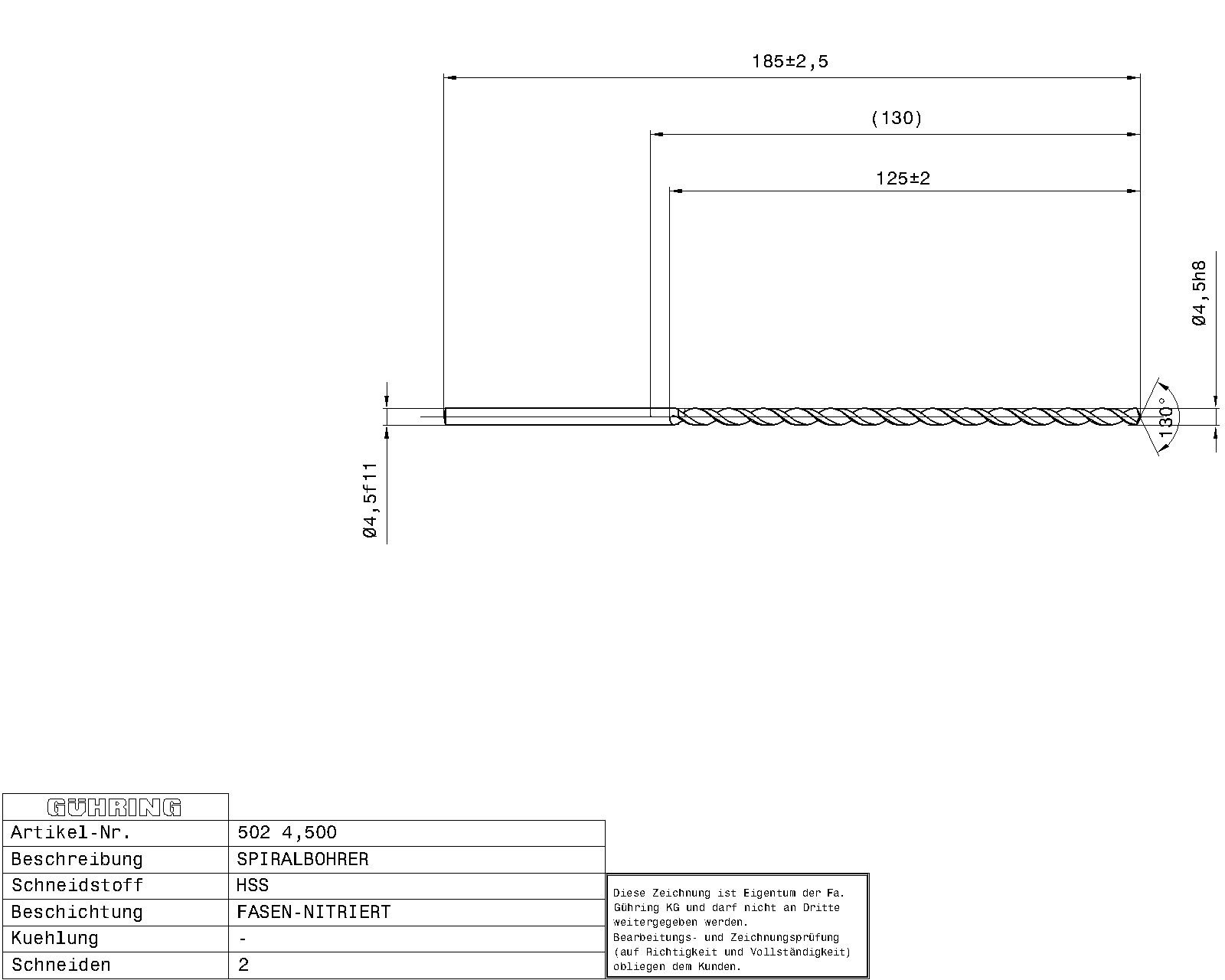

Extra length twist drills, series 1 HSS / Ø 4.500 mm h8 / ~15xD / DIN 1869 / Surface: nitrided lands / Cutting direction: right-hand / relieved cone 130°
Execution: Web thinning ≥ Ø 1.950 mm • relieved cone • wide flutes • for extremely deep holes • in case of poor chip evacuation
Application: grey cast iron and steels up to 1000 N/mm² • not recommended for: CrNi steels, stainless steels

Additional information

Weight	0.0160 kg
Dimensions
barcode
Additional Information	Point grinding: relieved cone Connection code machine side: straight shank Ø-Thinning: 1.950 Nominal Ø tolerance field: h8 Internal cooling: without Norm: DIN 1869 Surface: nitrided lands Discount group: 136 Type: 502 Cutting direction: right-hand Type: GT 100 Point angle: 130 Material: HSS Additional information: Series 1 Code no.: 4.500 Weight: 0.016 No of cutting edges: 2 Total length: 185.000 Groove length: 125.000 Usable length: 121.000 Shank Ø: 4.500 Shank length: 60.000 Nominal Ø mm: 4.500 Statistical goods number: 82075060

Need Technical Advice?

Description

Additional information

Brand

Guhring
