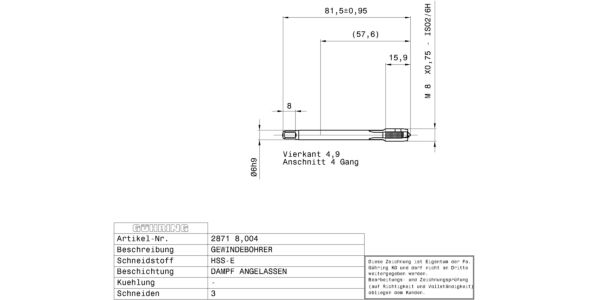

Guhring Fine pitch Gun nose tap HSS-E Blue band 0.75

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 374
Surface: Steam tempered
Discount group: 103
Type: 2871
Cutting direction: Right-hand
Type: VA
Material: HSS-E
Additional information: Internal threading
Form: B
Coloured ring: Blue ring
Threads: MF
Tolerance class thread: ISO2/6H
Hole type: Through hole
Groove: Straight-fluted cutting edges
Chamfer lead length: 3.5-5.5
Code no.: 8.004
Weight: 0.023
No of cutting edges: 3
Total length: 80.000
Thread length: 14.000
Groove length: 26.000
Usable length: 30.000
Norm 2: DIN 2184-1
Wrench opening 1: 4.900
Core hole Ø: 7.20
Shank Ø: 6.000
Nominal dimension thread: M8 x 0.75
Pitch: 0.750
External Ø: 8.060
Reach length: 58.000
Statistical goods number: 82074010
